Product: Optimum Cartridge Retainer Systems

Optimum Cartridge Retainer Systems

Nordson EFD Optimum Cartridge Retainer Systems | JEC Technology

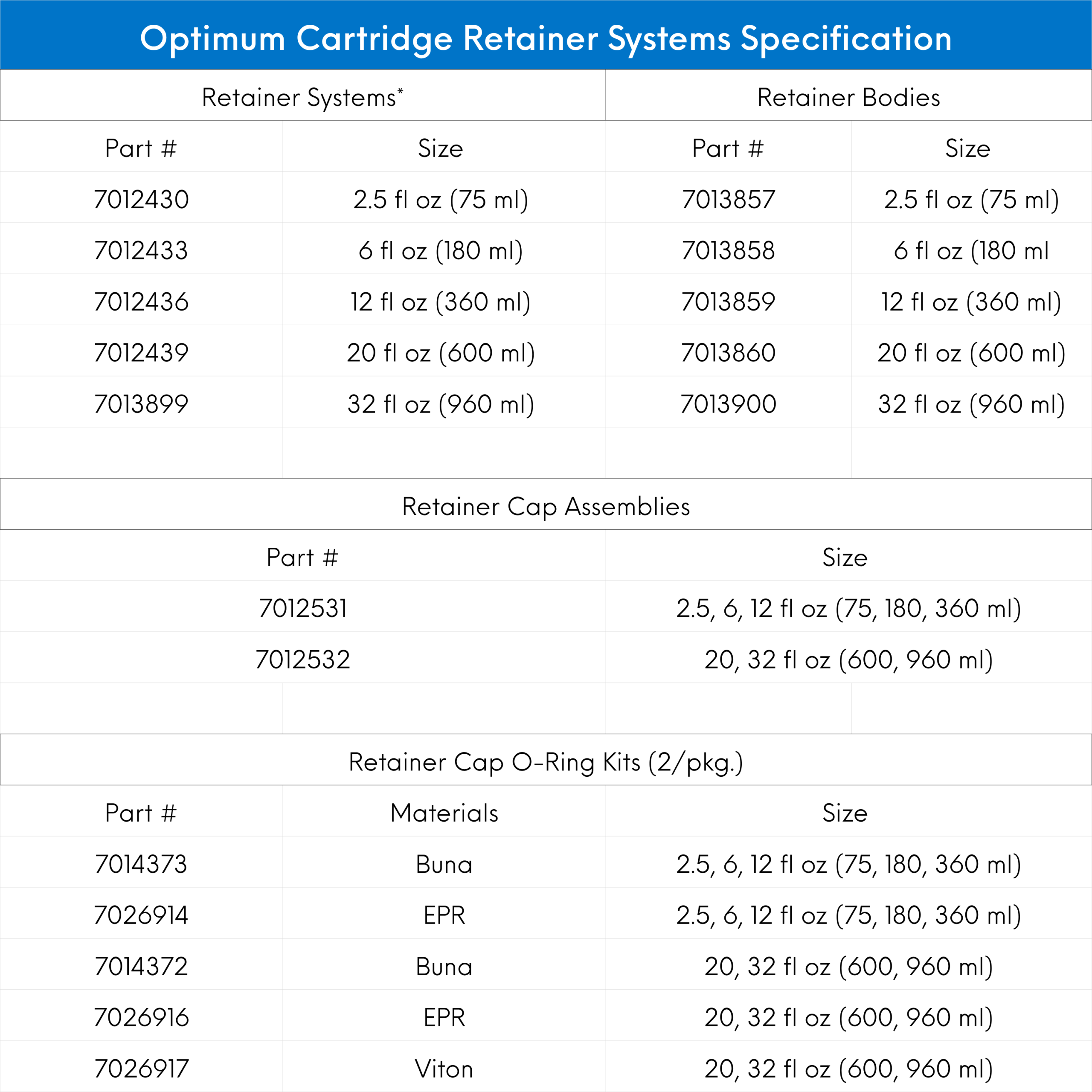

Nordson EFD Optimum Cartridge Retainer Systems Specifications | JEC Technology

$0.00

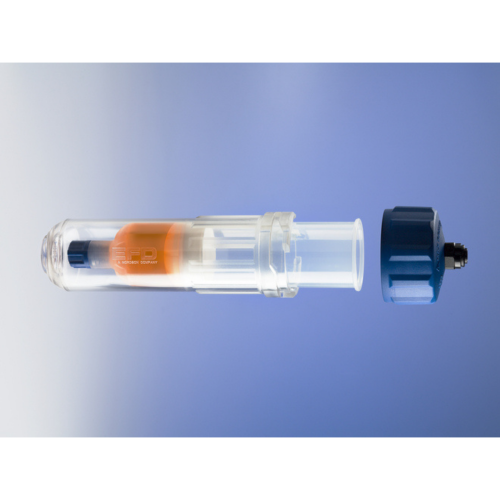

Molded from high-tensile, clear plastic, Optimum® cartridge retainers make it easy to visually monitor fluid levels during dispensing – an industry first

Categories: ,

Description

Optimum cartridge retainers are molded from high-tensile, clarified resin that permits easy visual monitoring of fluid levels. Large textured ribs provide an ergonomic grip for cap installation. Retainer caps feature locking tabs that snap securely into detents on the retainer body with an audible click. A push-in air line connector on top of the cap eliminates the need for bayonet connectors.

  • Large, textured ribs provide an ergonomic grip for simplified retainer cap installation. Locking tabs snap into dents on the retainer body with an audible click to confirm proper installation with minimal effort. This keeps cartridges secure within the retainer during use.
  • convenient push-in air line connector on top of the cap eliminates the need for bayonet connectors.
  • Retainer systems are available in 2.5 oz (75 ml), 6 oz (180 ml), 12 oz (360 ml), 20 oz (600 ml) and 32 oz (960 ml) capacities. In addition, Nordson EFD offers retainer systems with 7.0 bar (100 psi) pressure regulators. 1.0 bar (15 psi) pressure regulators are sold separately.
