Optimum Cartridge Systems

Description

Key Points:-

• Integrated fluid packaging and dispensing system for volumes exceeding 70cc syringe barrels.
• Molded from proprietary polymers with zero-draft walls to prevent swelling, distortion, air entrapment, and fluid bypass.
• Retainers feature quick-connect mechanical locking rings to secure cartridges under pneumatic load.

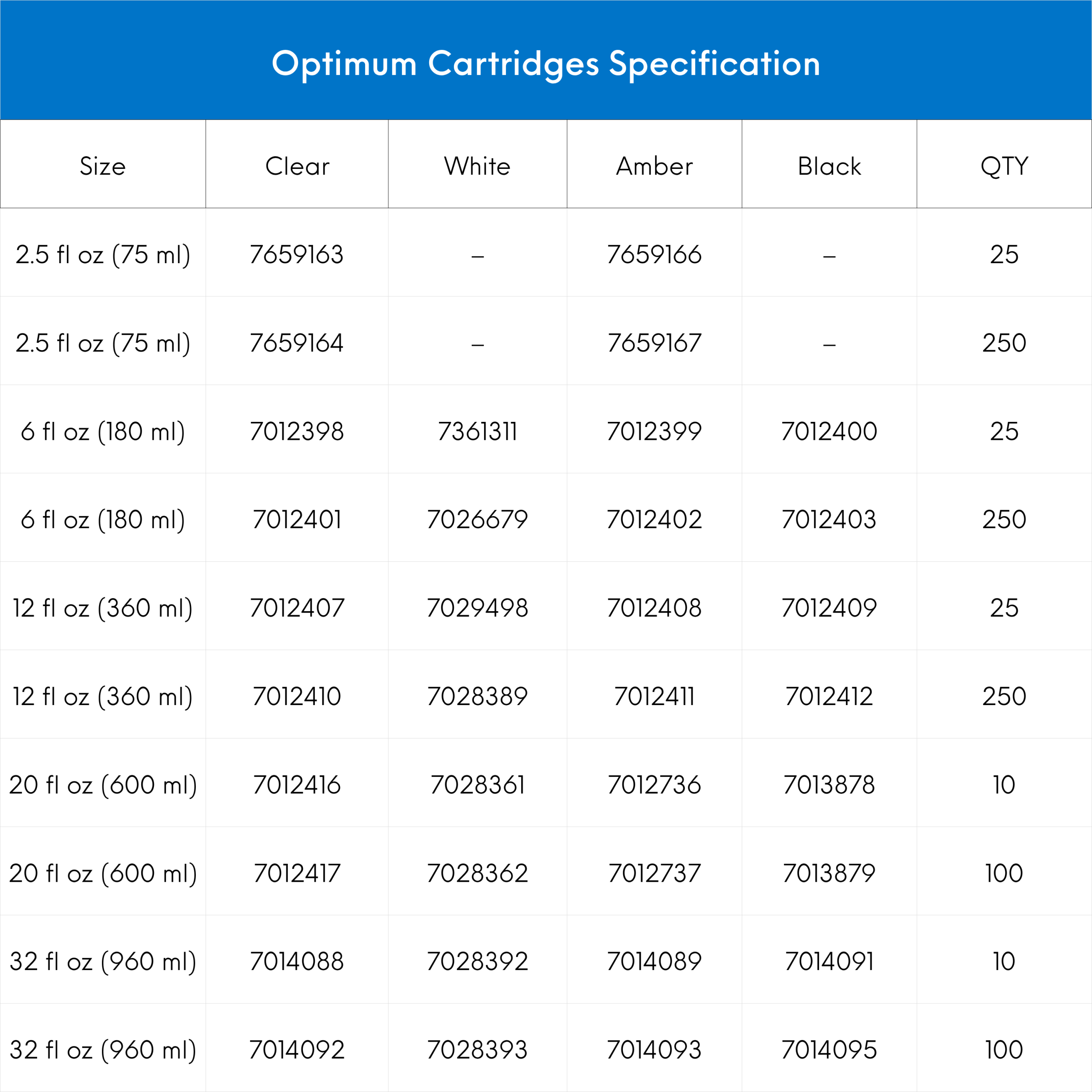

• Available in 2.5 oz, 6 oz, 12 oz, 20 oz, and 32 oz volumetric capacities.

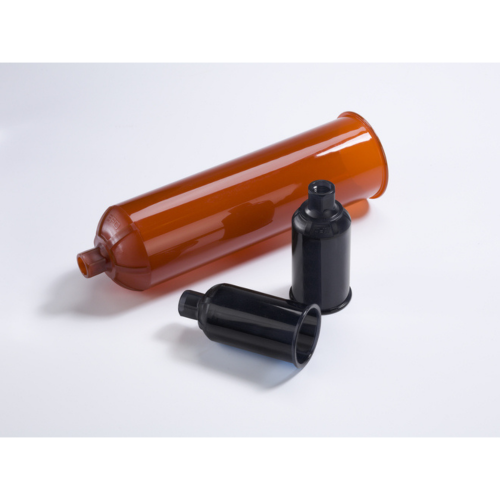

• Offered in clear, light-blocking black, and UV-blocking amber material variants.

Optimum cartridges and retainers engineered by Nordson EFD function as an integrated fluid packaging and dispensing system designed to maximize production yields and reduce operational waste. Purpose-built for production environments requiring volumes beyond standard 70cc syringe barrels, this system delivers smooth, highly predictable fluid dynamics across high-viscosity assemblies and automated lines. JEC Technology supplies these precision components to help regional manufacturers eliminate air entrapment, reduce fluid waste, and maintain tight deposit control.

Molded from proprietary polymers that combine chemical inertness with structural rigidity, each cartridge withstands high operating pressures without swelling or distortion. The matched retainers secure the cartridge under pneumatic load, ensuring zero leakage and precise alignment during automated or manual dispense cycles. By standardizing on Optimum cartridges and retainers, facilities achieve repeatable fluid transfer, streamlined line setup, and clean fluid purge cycles that lower overall processing costs.

Key Features

Engineered with custom-molded internal geometries, Optimum cartridges feature zero-draft walls that allow precision pistons to wipe barrel walls clean without air entrapment or fluid bypass. Available in 2.5 fl oz, 6 fl oz, 12 fl oz, 20 fl oz, and 32 fl oz volumetric capacities, the system scales seamlessly from short batch work to continuous automated dispensing. Every volume option maintains exact concentricity at the outlet, preserving tight dimensional tolerances across timed pulse micro-deposits and visual bead tracking applications.

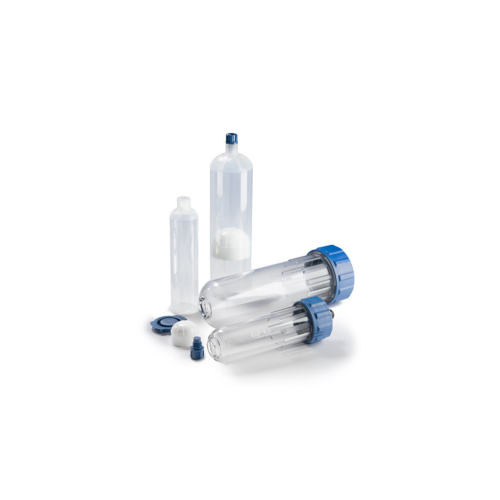

The structural retainer assembly features quick-connect mechanical locking rings designed for fast cartridge changeouts with minimal line downtime. Clear wall options allow real-time fluid level monitoring, while light-blocking black and UV-blocking amber variants protect light-sensitive UV adhesives and reactive materials from premature curing. As a distribution partner, JEC Technology provides complete system configuration support to match your fluid chemical compatibility, pressure thresholds, and dispense tip interfaces.
