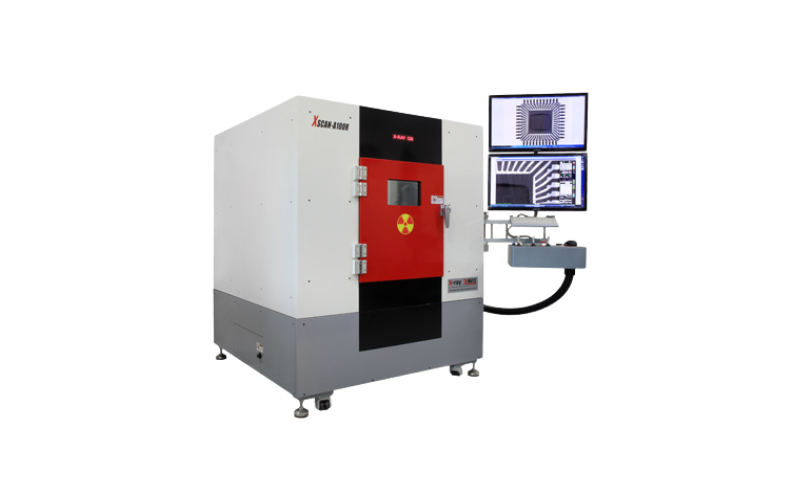

XSCAN-A100R
X-Ray Inspection for Quality Control and Process Optimisation
What is the XAVIS XScan A-series X-Ray Inspection Machine?
The XScan A Series X-Ray Inspection machine has a compact dimension using Flat Panel Detector. As compared to Image Intensifier, the magnification is minimized by using the Detector Tilt compared to table tilt and can accommodate large sized PCBs.
- 2D/3D Hybrid Inspection System with Automation Technology
- Precise results using high-speed OCT technology
- Built for user convenience: S/W, Table Size, etc. can be customized according to users and applications.
FEATURES & BENEFITS
World-class High-resolution X-ray imaging

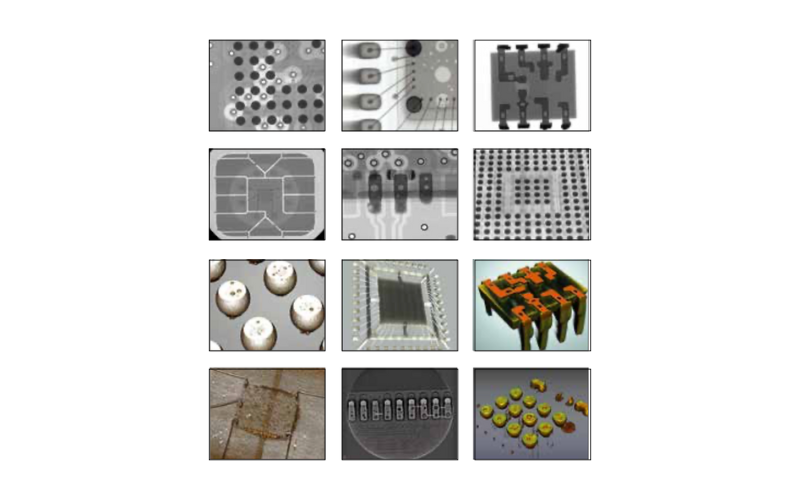

- Get detailed 3-dimensional (3D) view of interal structure of the components to identify and analyze complex defects
- Tube Focus Size: 5㎛. A closed tube source and tube focus size of 5㎛ allows for higher resolution of the X-ray image to detect smaller defect and finer details of the inspection process
- High Resolution FPD (Flat Panel Detector) ensures that you get detailed imaging and accurate results
- Detector Tilt (50˚) capability allows for flexibility in capturing images from different angels
Versatility and ability to adapt
Additional optional functions available to add versatility and adapt machine to fit your inspection process and needs.
- Versatility of the machine allows for inspection of small components to large circuit board
- Additional functions include Real 3D CT, Rotation, CT and 3D
- Navigation User interface (CNC Programming)
- Easy to Use & User-Friendly Operation
- Ideal for OEMs and CEMs

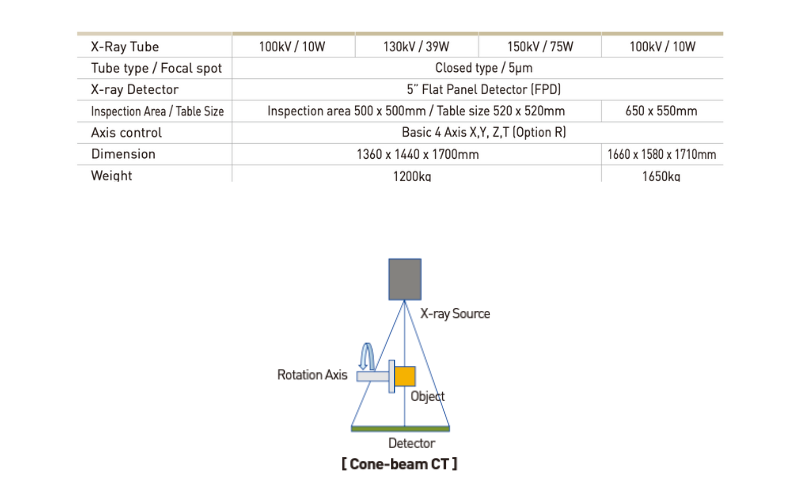

Model options:
- XSCAN-A100R (100kV / 250uA)
- XSCAN-A130H (130kV / 300uA)
Common Industrial Applications:
Made for inspection, failure analysis and package inspection of PCBs and Electronic Assemblies including
- SMT Assemblies
- Semiconductor Assemblies
- Battery Assemblies
- Cable Assemblies
