XSCAN-H130-OCT/H160-OCT/H160M
X-Ray Inspection for Semiconductor, Surface Mount and Printed Circuit Board

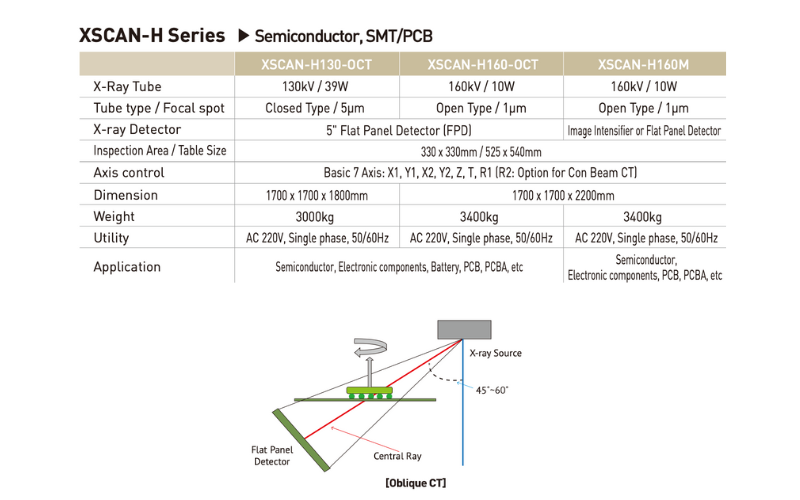

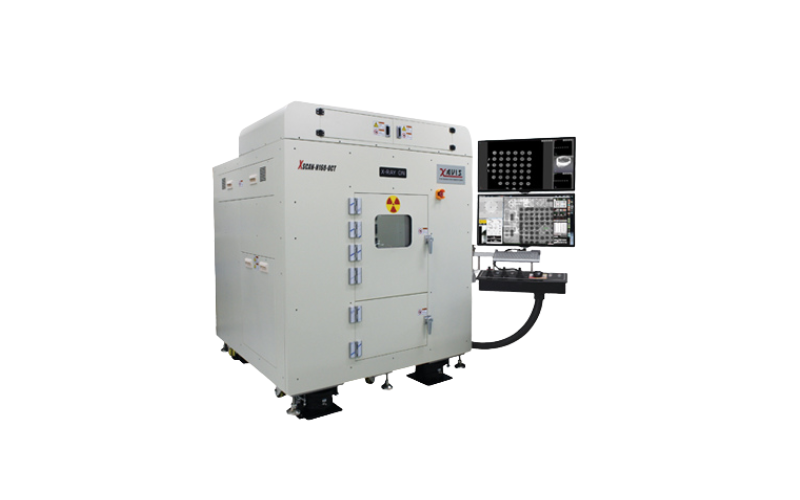

What is the XAVIS XScan H-series X-Ray Automatic Vision Inspection System?
The XScan A Series X-Ray Inspection machine has a compact dimension using Flat Panel Detector. As compared to Image Intensifier, the magnification is minimized by using the Detector Tilt compared to table tilt and can accommodate large sized PCBs.
- 2D/3D Hybrid Inspection System with Automation Technology
- Precise results using high-speed OCT technology
- Built for user convenience: S/W, Table Size, etc. can be customized according to users and applications.
FEATURES & BENEFITS
World-class High-resolution X-ray imaging
- Focus size: 5µm focus closed tube / 1um focus open tube
- Tube power: 130kV (39W), 160kV (10W)
- Detector 60 degree tilt, 5” FPD (Flat Panel Detector)
- Inspection area: 330mm x 330mm
- Basic 7 Axis: X1, Y1, X2, Y2, Z, T, R1 (Cone Beam CT ‘R2’
- Axis option)
- Navigation user interface / Auto teaching
- Various measuring tool software
- Easy to use
- Oblique CT
Common Industrial Applications:
- PCB, PCBA / MLB, Ultra precision inspection
- µBGA, BGA, CSP, ACF, Flip-Chip, FPCB etc
- Semiconductor, various selected printing functions by customer-oriented
- Engineering plastic injection molding, camera module, etc
More Details

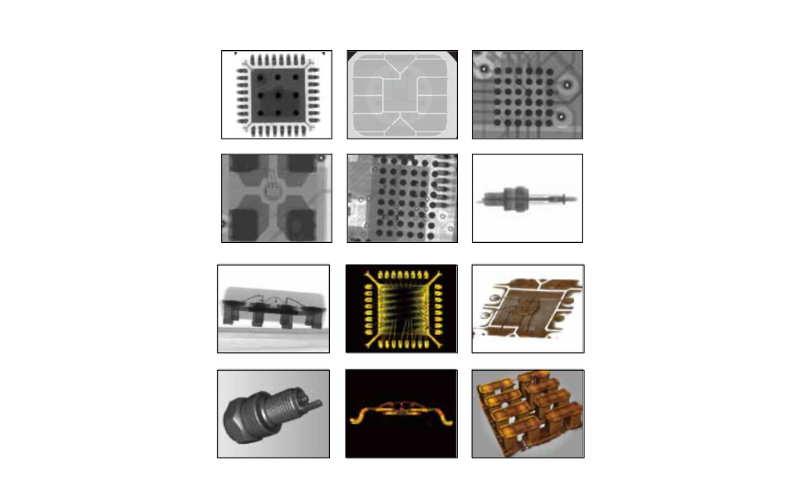

Inspection, CT & 3D Image
