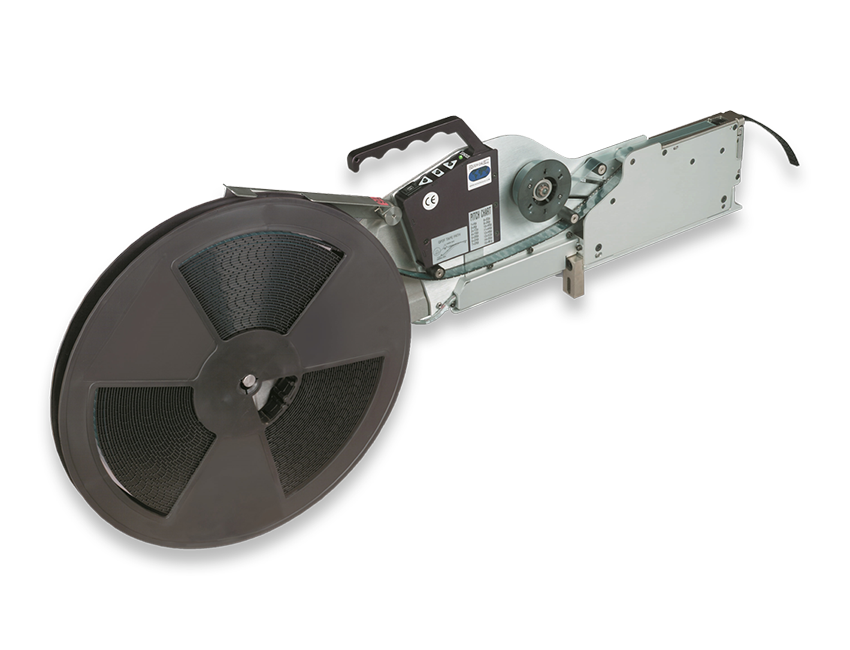

QF-Series Tape Feeder for OEM and Automation
Designed for reliable operation in a durable, ergonomic design and its Plug & Play compatibility
What is the QF-Series Tape Feeder?
QF Series, Fuji Compatible tape feeders are designed for reliable operation in a light-weight, ergonomic design. It is a low maintenance tape feeder that comes with useful diagnostic and maintenance tools. Its ability to accommodate tape widths up to 120 mm and deep pocket components eliminates the need for custom feeders.
- Drop in compatibility, smooth tape drive and reverse index tape drive
- Simple, electronic pick point adjustment and calibration
- Machine compatible with Fuji® IP, QP2, QP3, XP, and new models using the MFU interface
- Tape compatible with EIA-481 compliant materials
- Achieve cost-savings with fewer component mispicks and use feeder for several component pitch type
Size Options
- Two standard reel sizes are available, 15″ or 18″
FEATURES & BENEFITS
Versatile electronic multipitch operation
- Pitch selection via a selector button means that a single feeder can be used for several component pitch types. The result is that less feeder inventory is required compared to traditional fixed pitch feeders.
Eliminates the need for custom feeders
- Maximum pocket depth is between 4 mm and 22 mm, depending on tape width (8 mm up to 120 mm)
Optimized for OEM & Automation
- Easily customized for special applications and custom automation integrations
- A comprehensive 2 year warranty
- Programmable custom pick-point
Additional functions allowing for efficiency and cost savings
- Fewer component mis-picks and component loss with an electronically controlled motor-driven feeder advance
- Reverse tape index drive easily via a push button.
Compatibility:
- Compatible with Fuji IP/QP2/QP3/XP, new platforms (w/ MFU adapter)
- Custom automation applications
