For cost-effective intelligence, ease of use and simplicity to back-end electronics assembly automation

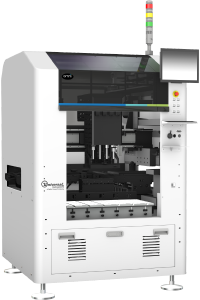

The Omni™ Inserter is part of the Universal Instruments’ Value Series that brings cost-effective intelligence, ease of use and simplicity to back-end electronics assembly automation. The Omni™ Inserter leverages a linear motor positioning system and a host of intelligent features to deliver accurate, high-speed insertion of axial, radial and other odd-form components. It supports a range of feeder types and features an active clinch and controlled insertion force.
The Omni™ Inserter provides single-process efficiency to complement multi-process cells and maximize line utilization while minimizing floor space requirements.
Highlights
- Best-Fit algorithm increases the success rate of insertion to >99.5%
- 78% reduction in reject rate through the use of AI + AOI Algorithm
Features
- Four independent insertion heads with standard active clinch
- High-force & programmable insertion modes; force monitoring
- Four upward-looking cameras utilizing AI & AOI vision algorithms
- Best-fit insertion algorithm
- CAD data import
- Independent pick & place sequences
- Portfolio of standard feeders; on-the-fly replenishment and reliable feeding solutions to support a variety of components and packaging
- Board shuffle mode (available on belt conveyor configuration)
