RADIAL 88HTi

For consistent high throughput throughout traditional PCB Assembly

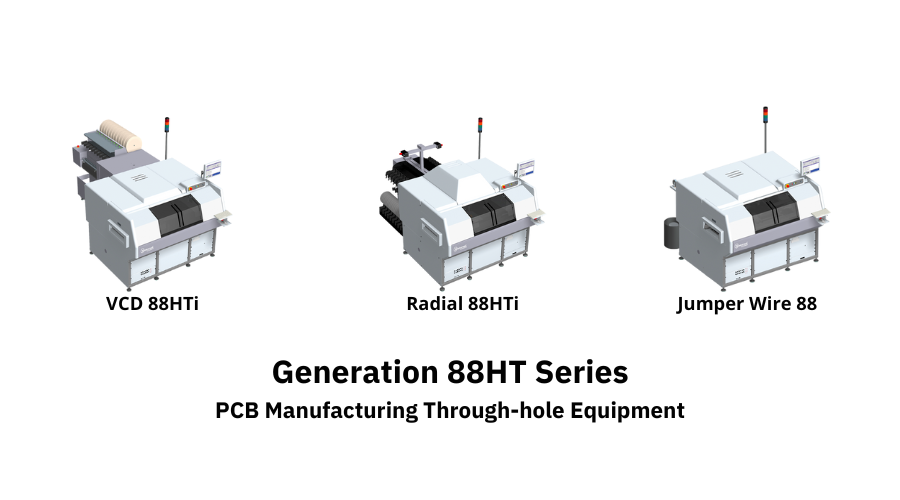

Generation 88HT Platform

The Radial 88HTi offers consistently high throughput regardless of component type, with single-, dual-, triple-, and quad-span insertion variants. Lead span capability up to 10mm virtually eliminates tedious manual assembly requirements to improve throughput, product quality and output per floor space, while reducing associated labor costs and time requirements to provide greater returns. The Radial 88HTi delivers exceptional flexibility with over 100 available inputs on the expandable sequencer. An intuitive operator interface that is common with other Generation 88HT equipment offers easy operation, diagnostics, data management and a graphical product editor.

The Radial 88HTi brings a new level of productivity to radial component sequencing and insertion, offering consistently high throughput regardless of component type.

View Specifications

Highlights

  • Highest reliability in the industry (300 ppm)
  • Value-driven evolution
  • Green machine
  • Heritage of reliability
  • Easy to use
  • Flexible performance

Features

  • 22,000 CPH
  • Highest reliability in the industry (300 ppm)
  • Component replenishment without machine stoppage
  • Manual Load or Automatic PCB Load/Unload
  • Configurable sequencer (In-Line or Straight-Back)
  • Multiple clinch options
  • Component Verifier
  • Simple-to-use operator environment with graphical user interface

RADIAL 88HTi Models & Specs

  • Radial 88HT Single-Span – 2.5mm
  • Radial 88HT Dual-Span – 2.5/5.0mm
  • Radial 88HT Triple-Span – 2.5/5.0/7.5mm
  • Radial 88HT Quad-Span – 2.5/5.0/7.5/10.0mm
