Product: 741V Series Needle Valves

741V Series Needle Valves

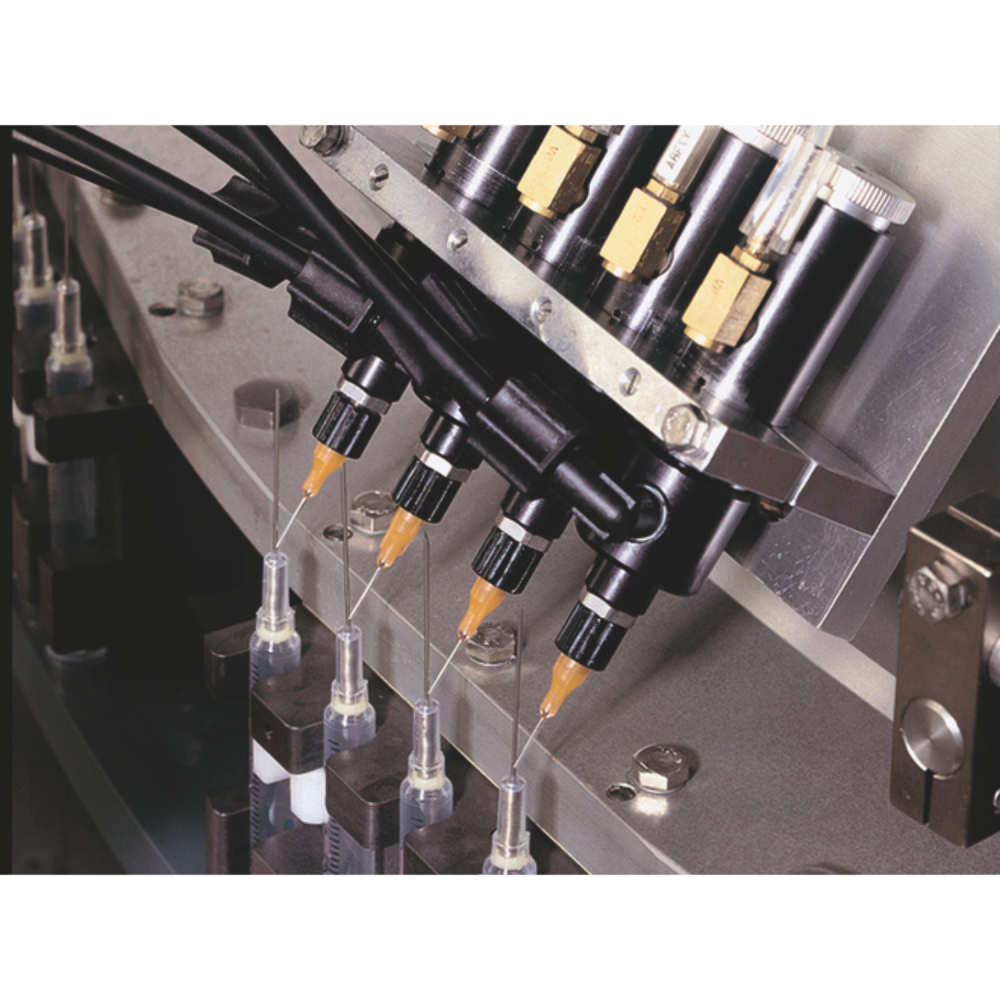

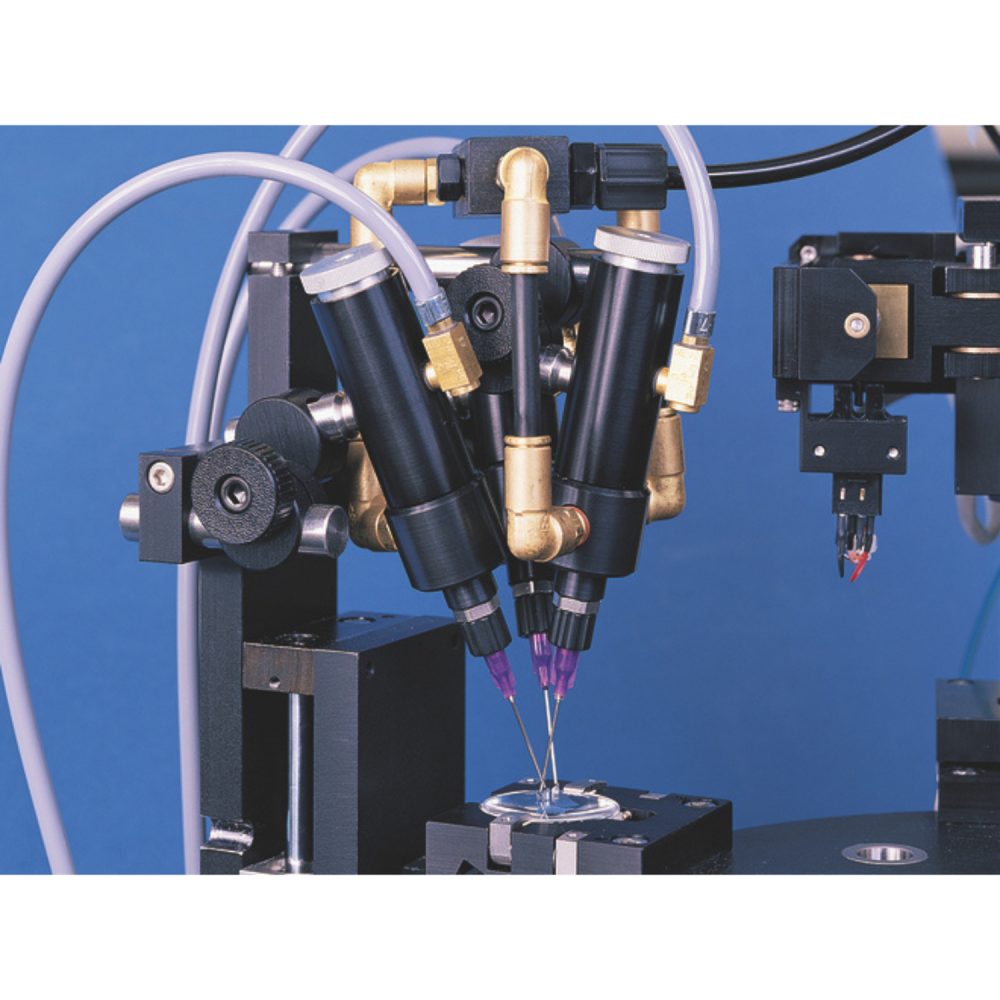

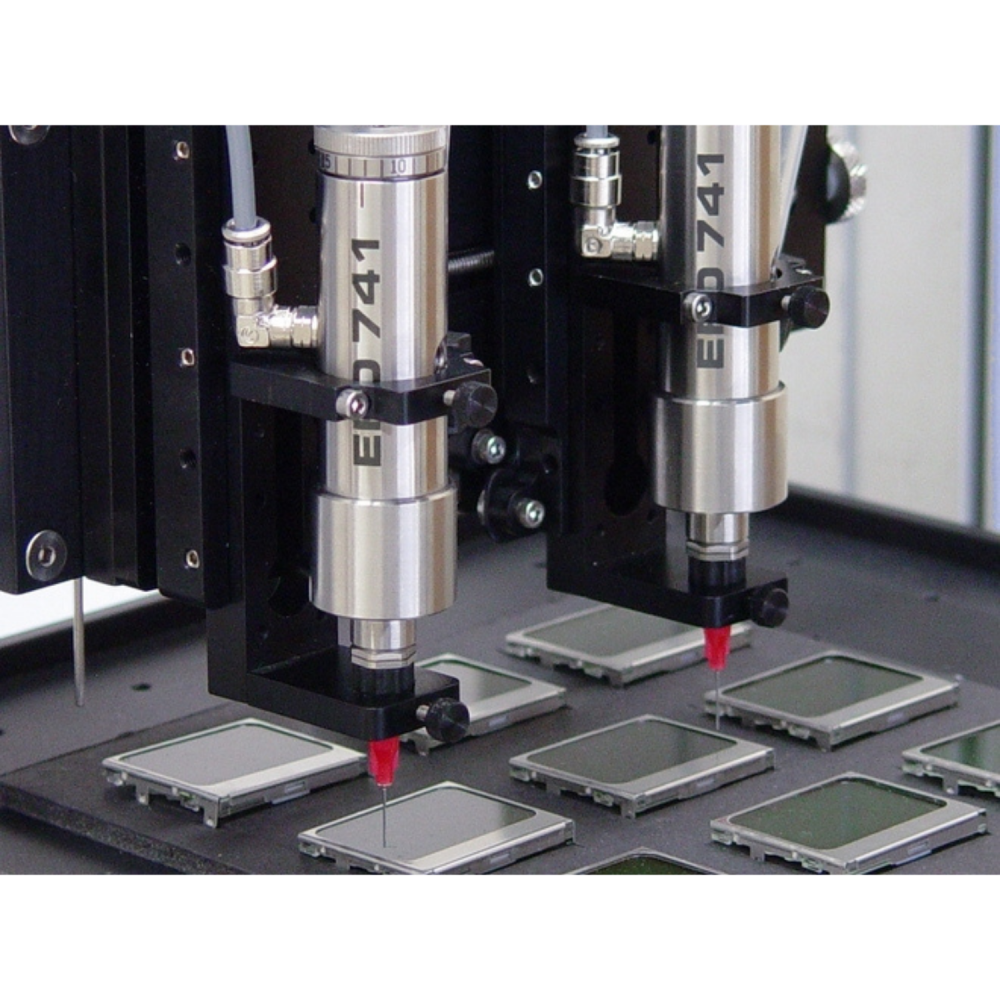

The 741V precision needle valve applies low viscosity fluids in accurate, repeatable amounts.

Because the stainless steel needle seats in the tip adapter, there is virtually no dead fluid volume between shots.

Quantity

Unmatched odd-form automation throughput

With a comprehensive range of component handling and input types, various standard tooling, and personalized design and implementation services, the FuzionOF addresses and caters to almost any odd-form application

FuzionOF™ incorporates precise, repeatable, closed-loop processes that reduce defects, rework and waste.

2D/3D Hybrid Inspection System with Automation Technology
Precise results using high-speed OCT technology
Built for user convenience: S/W, Table Size, etc. can be customized according to users and applications.

World-class High-resolution X-ray imaging

Get detailed 3-dimensional (3D) view of interal structure of the components to identify and analyze complex defects
Tube Focus Size: 5㎛. A closed tube source and tube focus size of 5㎛ allows for higher resolution of the X-ray image to detect smaller defect and finer details of the inspection process
High Resolution FPD (Flat Panel Detector) ensures that you get detailed imaging and accurate results
Detector Tilt (50˚) capability allows for flexibility in capturing images from different angels

Versatility and ability to adapt

Additional optional functions available to add versatility and adapt machine to fit your inspection process and needs.

Versatility of the machine allows for inspection of small components to large circuit board
Additional functions include Real 3D CT, Rotation, CT and 3D
Navigation User interface (CNC Programming)
Easy to Use & User-Friendly Operation
Ideal for OEMs and CEMs

Common Industrial Applications:

Made for inspection, failure analysis and package inspection of PCBs and Electronic Assemblies including

SMT Assemblies

Semiconductor Assemblies
Battery Assemblies
Cable Assemblies

PRODUCT GALLERY

More Details

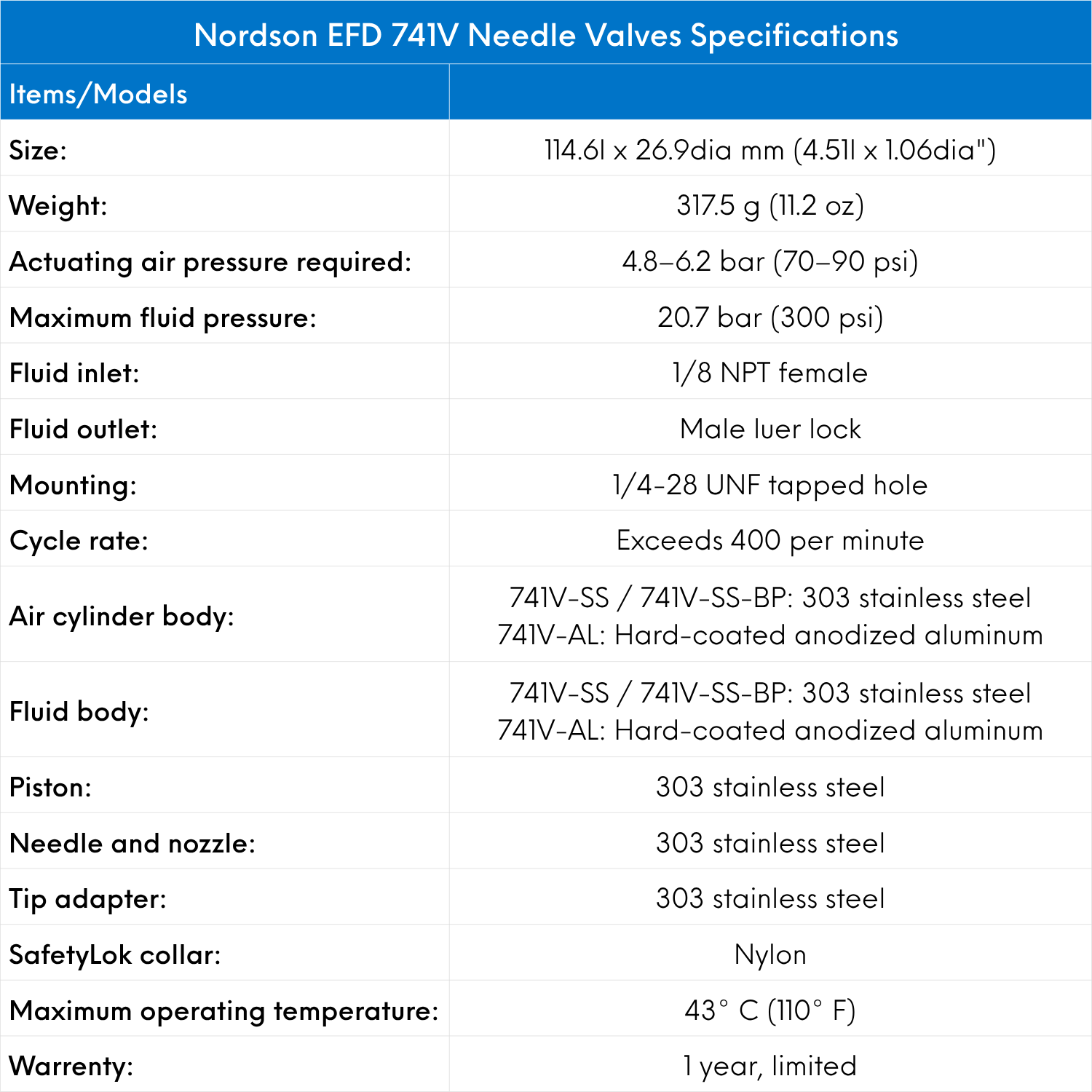

Model Options

Part Number	Item	Item Description
7007029	741V-SS Valve	• Air cylinder body and fluid body are passivated 303 stainless steel. • Includes fluid inlet fittings #7021499 and #7007038.
7021235	741V-AL Valve	• Air cylinder body and fluid body are hard-coated anodized aluminum. • Includes fluid inlet fittings #7021499 and #7007038.
7015584	741V-SS-BP Valve	• Air cylinder body and fluid body are passivated 303 stainless steel. • Includes fluid inlet fittings #7021499 and #7007038 and BackPack valve actuator.

Features, Benefits and Applications

Features and Benefits	For use with
• Low-maintenance design	• Accelerators
• Zero dead fluid volume	• Marking Inks
• Positive shutoff	• Silicone Oils
	• Solvents
	• UV-cure Adhesives
