YOUNGPOOL SMT Automatic First Article Inspection YP-860M | JEC Technology

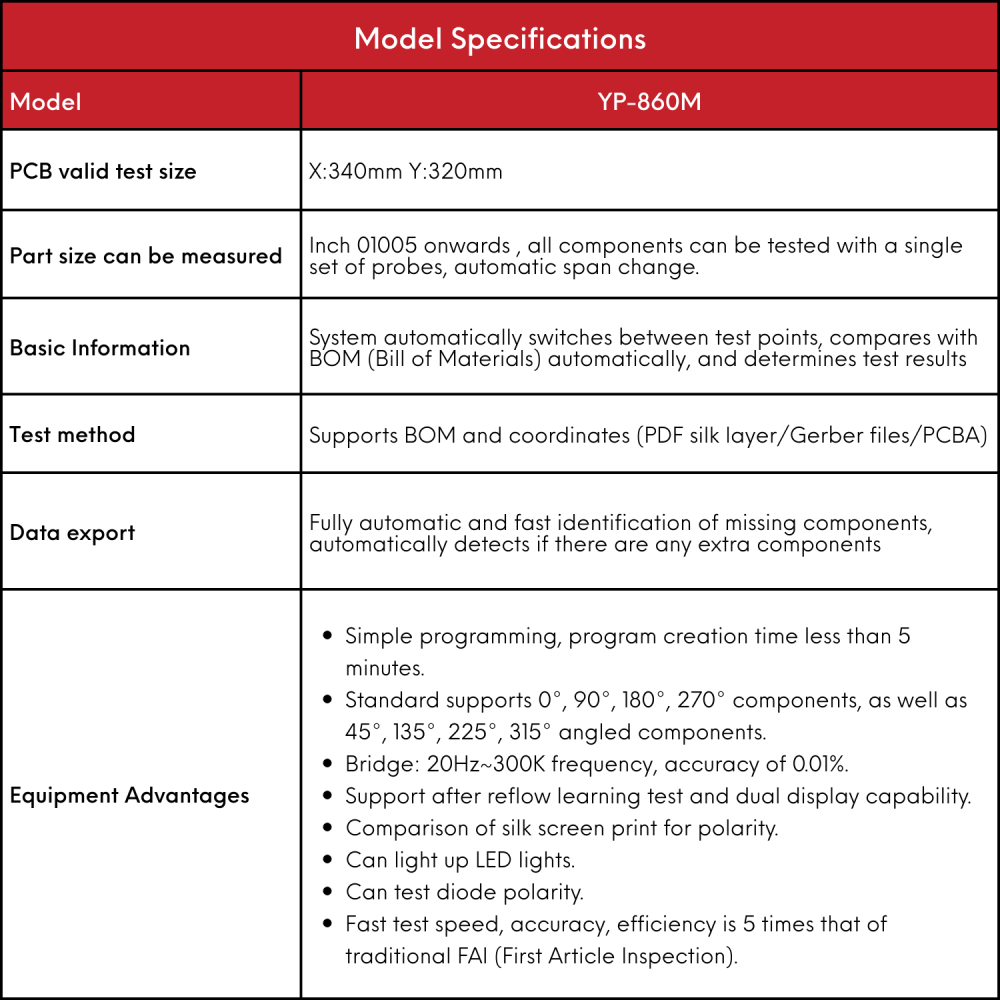

Product: YP-860M Automatic First Article Inspection

YP-860M Automatic First Article Inspection

YOUNGPOOL SMT Automatic First Article Inspection YP-860M | JEC Technology

$0.00

Speed up your SMT line with the YP-860M, an advanced automatic FAI solution that verifies resistors, capacitors, inductors, polarity, and placement errors in seconds. With smart visual inspection, automatic BOM matching, offline programming, and ultra-fast testing, it boosts accuracy and slashes setup time by 5x over traditional methods, ideal for fast-paced electronics manufacturing.

Categories: ,

Description

YOUNGPOOL Technology’s YP-860M SMT Automatic First Article Inspection boosts accuracy and slashes setup time by 5x over traditional methods, ideal for fast-paced electronics manufacturing.

  • Automatically check and determine the value of resistance, capacitance and inductance
  • Support visual inspection and automatic comparison of images, real-time display of actual installation status, screen printing, polarity, check parts offset, wrong parts,reverse, missing parts, multiple pieces
  • The program can automatically generate test program after customer BOM and original coordinate data or MOUNT data import
  • Support off-line programming, can read the machine program, software automatically merge program, one key to generate the first piece of the test program
