Nordson EFD GV Series Automated Fluid Dispensing Robot | JEC Technology

Product: GV Series Automated Dispensing System

GV Series Automated Dispensing System

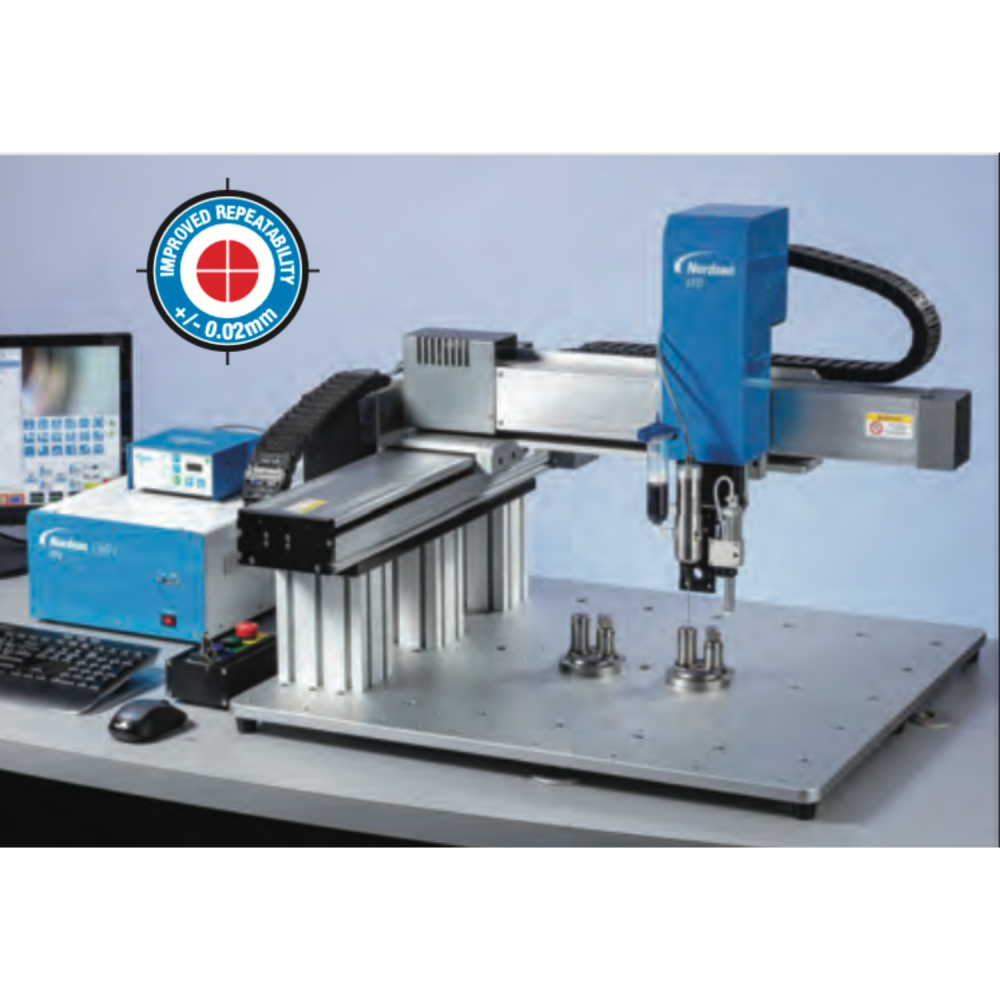

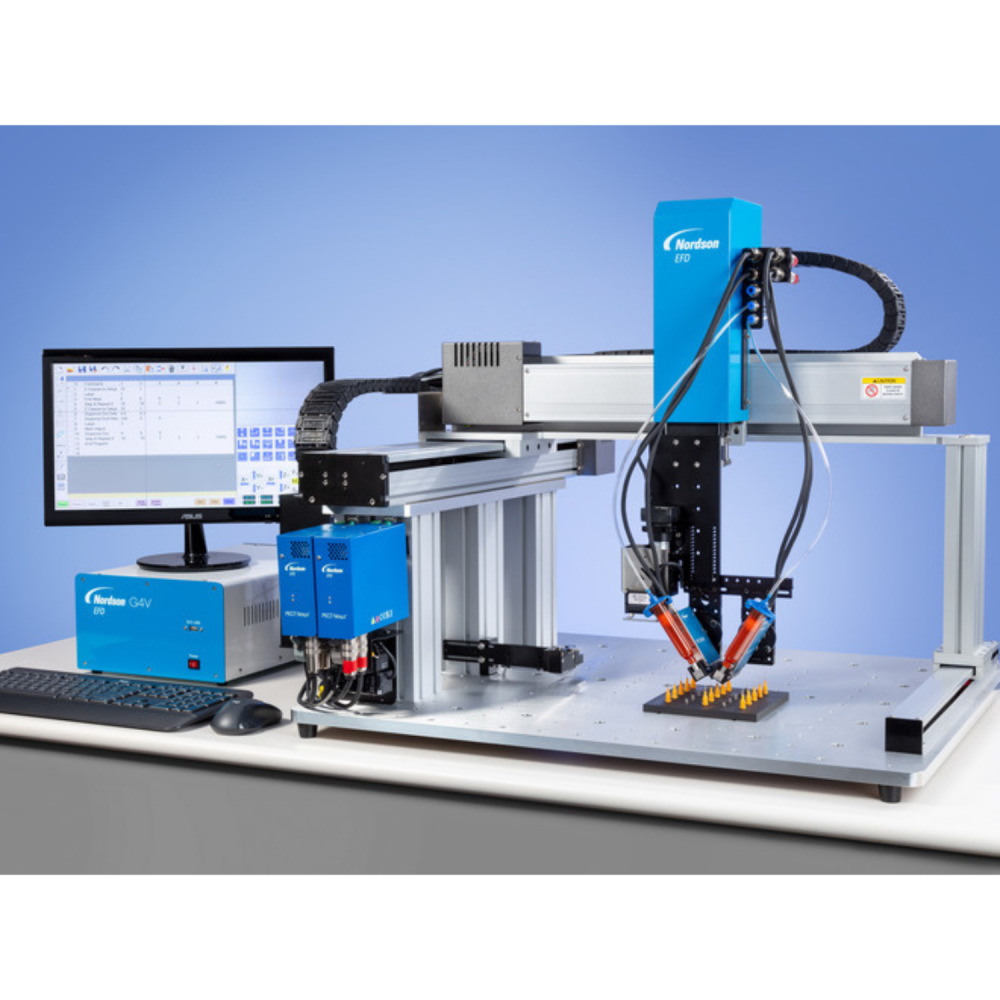

Nordson EFD GV Series Automated Fluid Dispensing Robot | JEC Technology

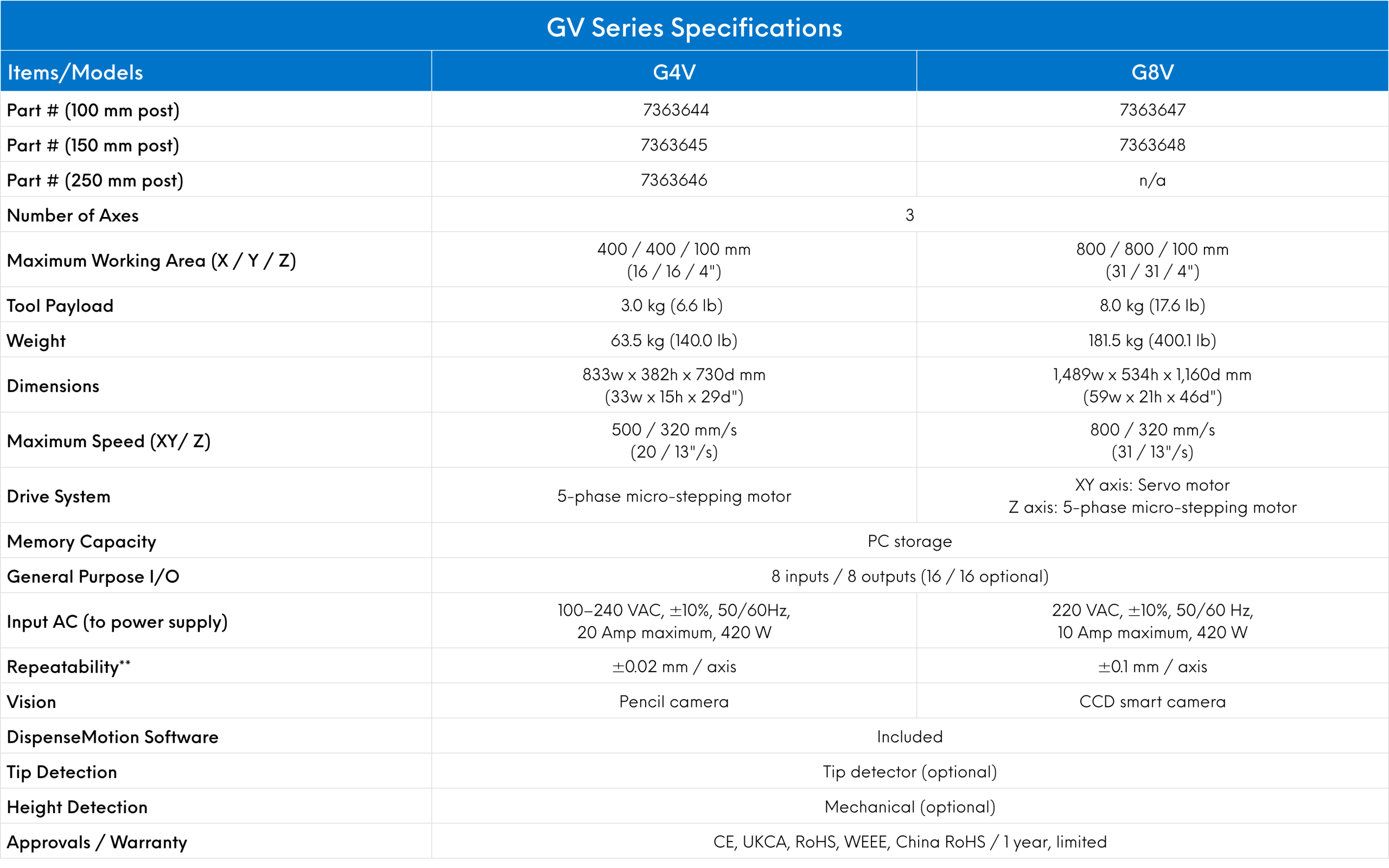

Nordson EFD GV Series Dispensing System Model Specifications | JEC Technology
Nordson EFD Automated Dispensing System Set-up | JEC Technology
Nordson EFD GV Series Automated Dispensing System | JEC Technlogy

$0.00

The 4-axis RV Series offers easy setup and programming with specialized vision-guided DispenseMotion software and an integrated CCD smart vision camera to deliver market-leading repeatability and accuracy in fluid placement.

Categories: ,

Description

The 4-axis RV Series offers easy setup and programming with specialized vision-guided DispenseMotion software and an integrated CCD smart vision camera to deliver market-leading repeatability and accuracy in fluid placement. Simultaneous X and Y movement during R rotation provides true point of programming for dispensing at any angle along the 360° rotation plane.

In addition to its standard fixed-mount CCD camera, the RV Series has an optional rotating-mount camera that mounts onto the R-axis of the robot. This allows multiple substrate viewing orientations at 0° or 90° angles. It also allows multi-focus on multiple substrate heights. Verify fluid deposit placement and accuracy with the OptiSure automated optical inspection (AOI) software add-on.

Related products

$0.00

Quantity
Add to Cart
[enquiry_button]
Unmatched odd-form automation throughput

With a comprehensive range of component handling and input types, various standard tooling, and personalized design and implementation services, the FuzionOF addresses and caters to almost any odd-form application

FuzionOF™ incorporates precise, repeatable, closed-loop processes that reduce defects, rework and waste.

xavis-a-series-featuresbenefits 1
  • 2D/3D Hybrid Inspection System with Automation Technology
  • Precise results using high-speed OCT technology
  • Built for user convenience: S/W, Table Size, etc. can be customized according to users and applications.
World-class High-resolution X-ray imaging
  • Get detailed 3-dimensional (3D) view of interal structure of the components to identify and analyze complex defects
  • Tube Focus Size: 5㎛. A closed tube source and tube focus size of 5㎛ allows for higher resolution of the X-ray image to detect smaller defect and finer details of the inspection process
  • High Resolution FPD (Flat Panel Detector) ensures that you get detailed imaging and accurate results
  • Detector Tilt (50˚) capability allows for flexibility in capturing images from different angels
Versatility and ability to adapt

Additional optional functions available to add versatility and adapt machine to fit your inspection process and needs.

  • Versatility of the machine allows for inspection of small components to large circuit board
  • Additional functions include Real 3D CT, Rotation, CT and 3D
  • Navigation User interface (CNC Programming)
  • Easy to Use & User-Friendly Operation
  • Ideal for OEMs and CEMs
Common Industrial Applications:

Made for inspection, failure analysis and package inspection of PCBs and Electronic Assemblies including

SMT Assemblies

  • Semiconductor Assemblies
  • Battery Assemblies
  • Cable Assemblies
