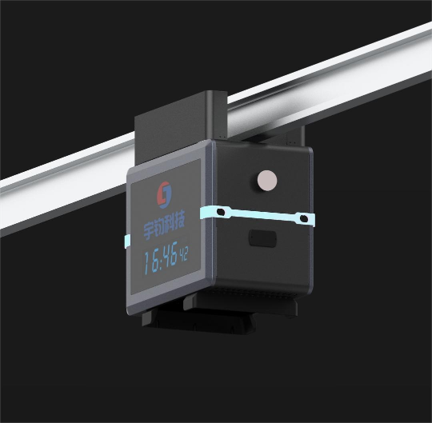

Light AMHS Trolley OTS-811-001

Description

Key Points:-

• Self-propelled aerial transport trolley (OTS-811-001) for light-duty material handling.

• Moves loads up to 20 kg on an overhead track system with a 500 mm turning radius.

• Powered continuously via slide contact lines to eliminate battery charging delays.

• Reaches travel speeds up to 240 m/min with ±5 mm walking accuracy and ±2 mm lifting accuracy.

• Lifting belt mechanism provides vertical travel up to 6,000 mm.

• Supports customizable load adapters, including lateral roll-in boxes, bottom open-close containers, and manipulator arms.

• Connects via Wi-Fi/PLC to MES and WMS platforms for central control and obstacle avoidance.

The Light-Duty Overhead Trolley (OTS-811-001) is an advanced, self-propelled aerial transport solution engineered to transform material handling across modern industrial facilities. Designed by Yujun Technology and distributed in Singapore by JEC Technology, this intelligent 3D logistics carrier utilizes unused overhead airspace to transfer lightweight goods smoothly between warehouses, laboratories, and production stations. By lifting logistics off the floor, facilities overcome spatial constraints, eliminate ground obstacles, and achieve continuous, 24/7 automated delivery with maximum spatial efficiency.

Operating on an overhead track system powered by slide contact lines, the trolley eliminates battery charging delays and ensures round-the-clock operational readiness. It features an integrated lifting belt mechanism that safely hoists and transports loads up to 20 kg across horizontal routes and tight 500 mm turning radii. Whether deployed in cleanrooms, healthcare centers, or fast-paced electronics assembly lines, this light-duty trolley delivers a reliable, low-noise, and eco-friendly logistics upgrade.

Key Features

• High-Precision Automated Transport: The trolley reaches travel speeds of up to 240 m/min with a precise walking positioning accuracy of ±5 mm and a lifting positioning accuracy of ±2 mm. Driven by smart sensors and central software controls, the system automatically routes, avoids obstacles, and handles automated loading and unloading at designated stations.
• Versatile Cargo Loaders & Vertical Reach: Designed to fit various material formats, the trolley supports customized load adapters including lateral roll-in boxes, bottom open-close containers, and manipulator arms. Its lifting belt mechanism provides vertical travel up to 6,000 mm, allowing seamless picking and dropping from varying height levels.
• Industrial Connectivity & Scalable Design: Equipped with industrial-grade Wi-Fi/PLC communication, the system easily integrates with third-party software like MES and WMS for real-time operational monitoring. Facility layouts can easily scale the number of active trolleys and receiving points to adapt to shifting production demands and maximize overall throughput.
