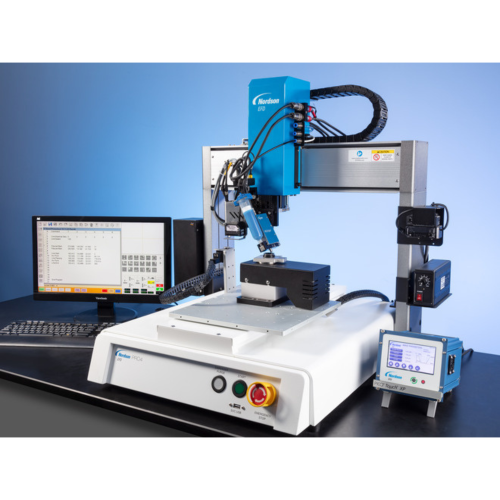

Product: PROPlus / PRO Series Automated Dispensing Systems

PROPlus / PRO Series Automated Dispensing Systems

Nordson EFD ProPlus_ProSeries Automated Fluid Dispensing Robot | JEC Technology

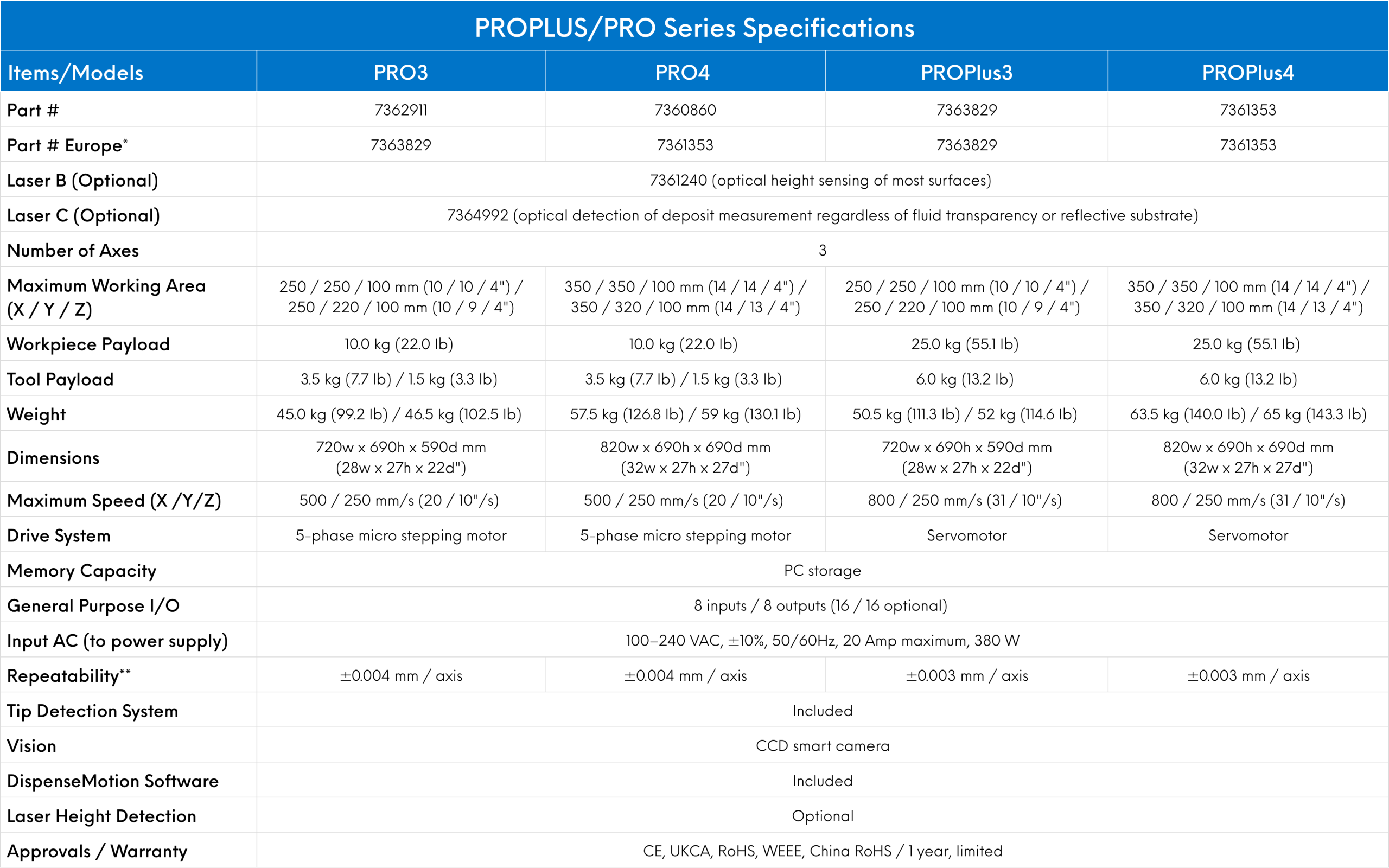

Nordson EFD ProPlus Pro Automated Dispensing System - Model Specifications | JEC Technology
Nordson EFD Automated Dispensing System Set-up | JEC Technology
Nordson EFD ProPlus_ProSeries Automated Dispensing System - Close-up | JEC Technology

$0.00

The PROPlus / PRO Series is EFD’s most advanced automated dispensing system. Along with specialized DispenseMotion software and fully integrated vision and laser height sensing capabilities, the system includes closed-loop encoding to deliver best-in-class dispensing performance and exceptional process control.

Categories: ,

Description

The PROPlus / PRO Series is EFD’s most advanced automated dispensing system.

Along with specialized DispenseMotion software and fully integrated vision and laser height sensing capabilities, the system includes closed-loop encoding to deliver best-in-class dispensing performance and exceptional process control.

Verify fluid deposit placement and accuracy with the OptiSure automated optical inspection (AOI) software add-on. When paired with the OptiSure confocal laser, the AOI system measures the height of fluid deposits in addition to width and diameter, providing 3D dispense verification.
