Product: QF Series Tape Feeder

QF Series Tape Feeder

Fuji Compatible Tape Feeder for OEM and Automation

The QF-Series tape feeders are compatible with Fuji IP/QP2/QP3/XP , new platform (w/ MFU adapter) and custom automation applications. Two standard reel sizes are available, 15″ or 18″. Maximum pocket depth is between 4 mm and 22 mm, depending on tape width (8 mm up to 120 mm)eliminates the need for custom feeders.

Drop in compatibility, smooth tape drive and reverse index tape drive
Simple, electronic pick point adjustment and calibration
Achieve cost-savings with fewer component mispicks and use feeder for several component pitch type

Quantity

Enquire Now

Unmatched odd-form automation throughput

With a comprehensive range of component handling and input types, various standard tooling, and personalized design and implementation services, the FuzionOF addresses and caters to almost any odd-form application

FuzionOF™ incorporates precise, repeatable, closed-loop processes that reduce defects, rework and waste.

2D/3D Hybrid Inspection System with Automation Technology
Precise results using high-speed OCT technology
Built for user convenience: S/W, Table Size, etc. can be customized according to users and applications.

World-class High-resolution X-ray imaging

Get detailed 3-dimensional (3D) view of interal structure of the components to identify and analyze complex defects
Tube Focus Size: 5㎛. A closed tube source and tube focus size of 5㎛ allows for higher resolution of the X-ray image to detect smaller defect and finer details of the inspection process
High Resolution FPD (Flat Panel Detector) ensures that you get detailed imaging and accurate results
Detector Tilt (50˚) capability allows for flexibility in capturing images from different angels

Versatility and ability to adapt

Additional optional functions available to add versatility and adapt machine to fit your inspection process and needs.

Versatility of the machine allows for inspection of small components to large circuit board
Additional functions include Real 3D CT, Rotation, CT and 3D
Navigation User interface (CNC Programming)
Easy to Use & User-Friendly Operation
Ideal for OEMs and CEMs

Common Industrial Applications:

Made for inspection, failure analysis and package inspection of PCBs and Electronic Assemblies including

SMT Assemblies

Semiconductor Assemblies
Battery Assemblies
Cable Assemblies

PRODUCT GALLERY

More Details

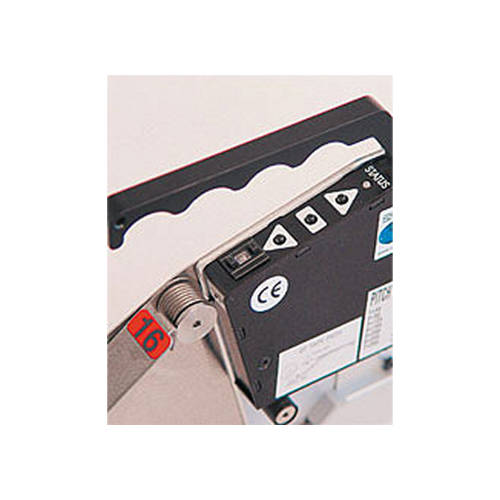

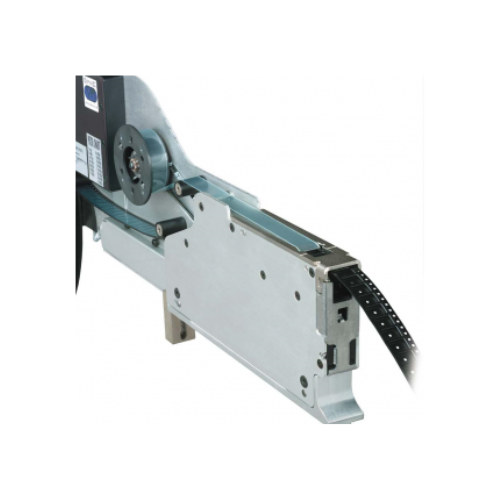

QF Series, Fuji Compatible tape feeders are designed for reliable operation in a light-weight, ergonomic design. It is a low maintenance tape feeder that comes with useful diagnostic and maintenance tools. Its ability to accommodate tape widths up to 120 mm and deep pocket components eliminates the need for custom feeders.

QF Series Feeder Architecture

Feeds EIA-481 paper or embossed tape
Simple, intuitive operator control panel
Reliable, electronic, multi-pitch motors
Simple discrete I/O PLC integration

Proven Design, Successful Application History

FUJI IP, QP2, QP3, XP2
Data I/O, BP Micro, System General
ASM PT, Datacon, MAT Die Bonders
Special Automation Machines

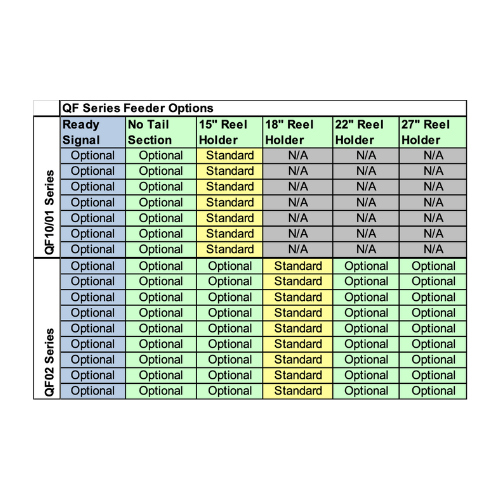

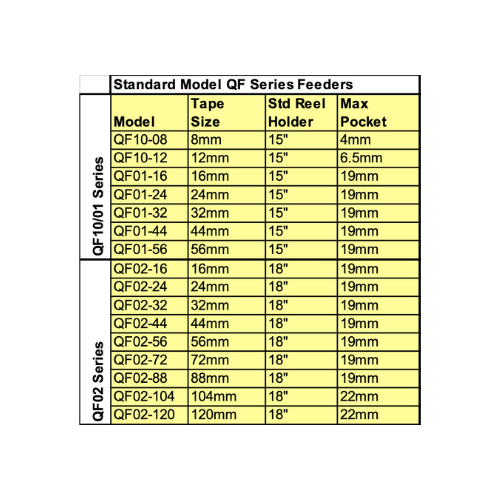

Sizes/Configurations

8mm – 120mm, deep pocket options
Integrated Reel Holder options
Custom configurations available

YP-860M Automatic First Article Inspection

Speed up your SMT line with the YP-860M, an advanced automatic FAI solution that verifies resistors, capacitors, inductors, polarity, and placement errors in seconds. With smart visual inspection, automatic BOM matching, offline programming, and ultra-fast testing, it boosts accuracy and slashes setup time by 5x over traditional methods, ideal for fast-paced electronics manufacturing.

YOUNGPOOL Technology’s YP-860M SMT Automatic First Article Inspection boosts accuracy and slashes setup time by 5x over traditional methods, ideal for fast-paced electronics manufacturing.

Automatically check and determine the value of resistance, capacitance and inductance
Support visual inspection and automatic comparison of images, real-time display of actual installation status, screen printing, polarity, check parts offset, wrong parts,reverse, missing parts, multiple pieces
The program can automatically generate test program after customer BOM and original coordinate data or MOUNT data import
Support off-line programming, can read the machine program, software automatically merge program, one key to generate the first piece of the test program
