Product: Optimum Smoothflow Tapered Dispense Tips

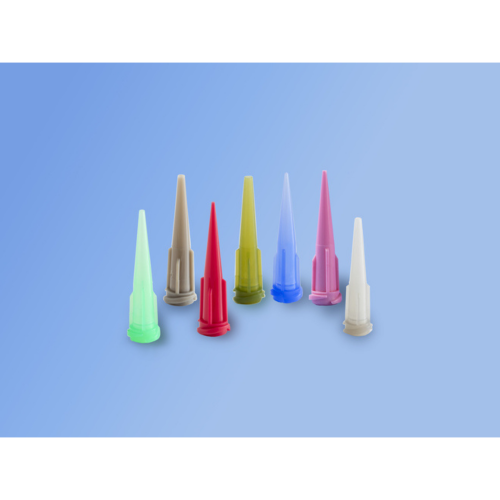

Optimum Smoothflow Tapered Dispense Tips

The tapered design of these dispense tips provides a smooth flow for viscous fluids and resists clogging when dispensing particle-filled materials.

A higher flow rate allows you to lower air pressure and shorten dispense times, which can help improve yields. Optimum SmoothFlow tapered tips are manufactured with clean, blunt ends to ensure precise, repeatable dispensing.

Quantity

Enquire Now

Unmatched odd-form automation throughput

With a comprehensive range of component handling and input types, various standard tooling, and personalized design and implementation services, the FuzionOF addresses and caters to almost any odd-form application

FuzionOF™ incorporates precise, repeatable, closed-loop processes that reduce defects, rework and waste.

2D/3D Hybrid Inspection System with Automation Technology
Precise results using high-speed OCT technology
Built for user convenience: S/W, Table Size, etc. can be customized according to users and applications.

World-class High-resolution X-ray imaging

Get detailed 3-dimensional (3D) view of interal structure of the components to identify and analyze complex defects
Tube Focus Size: 5㎛. A closed tube source and tube focus size of 5㎛ allows for higher resolution of the X-ray image to detect smaller defect and finer details of the inspection process
High Resolution FPD (Flat Panel Detector) ensures that you get detailed imaging and accurate results
Detector Tilt (50˚) capability allows for flexibility in capturing images from different angels

Versatility and ability to adapt

Additional optional functions available to add versatility and adapt machine to fit your inspection process and needs.

Versatility of the machine allows for inspection of small components to large circuit board
Additional functions include Real 3D CT, Rotation, CT and 3D
Navigation User interface (CNC Programming)
Easy to Use & User-Friendly Operation
Ideal for OEMs and CEMs

Common Industrial Applications:

Made for inspection, failure analysis and package inspection of PCBs and Electronic Assemblies including

SMT Assemblies

Semiconductor Assemblies
Battery Assemblies
Cable Assemblies

PRODUCT GALLERY

More Details

Features, Benefits and Applications

Translucent tapered dispense tips are made of a special polyethylene that contains a light-blocking additive to help protect UV-sensitive fluids.
Rigid, opaque polypropylene-molded tapered dispense tips provide protection for light-sensitive fluids.
UV-cure Adhesives, Gel Cyanoacrylates, Solder Paste, Sealants, Epoxies, RTV Silicones, Thick Pastes and more

Options

Gauge	Color	ID		Standard	Opaque Rigid	Qty/Box
Gauge	Color	mm	inch	Standard	Opaque Rigid	Qty/Box
14	Olive	1.6	0.063	7018052	7018049	50
16	Grey	1.19	0.047	7018100	7018097	50
16	Grey	1.19	0.047	7018101	–	1000
18	Green	0.84	0.033	7018158	7018147	50
18	Green	0.84	0.033	7018159	–	1000
20	Pink	0.58	0.023	7005009	7005006	50
20	Pink	0.58	0.023	7018217	–	1000
22	Blue	0.41	0.016	7018298	7005007	50
22	Blue	0.41	0.016	7018299	–	1000
25	Red	0.25	0.01	7018391	7018370	50
27	Clear	0.2	0.008	7018417	–	50
27	Clear	0.2	0.008	7018418	–	1000
