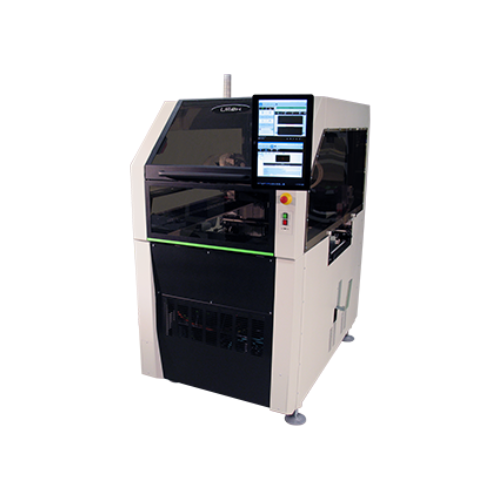

Product: UFlex™

UFlex™

Flexible Multi-Process Automation

The Uflex™ flexible automation platform provides exclusive value by breaking traditional automation barriers. It features a small footprint and delivers cost-effective automation by quickly transitioning to a comprehensive array of standard and third-party tooling and numerous feeding options to perform virtually any automation task. Uflex supports up to four high-speed vacuum spindles or three high-speed pneumatic grippers. It offers investment protection versus custom cells designed for a single task. It can lower the cost per insertion by more than 95% versus manual assembly process while substantially improving quality and yields.

Quantity

Enquire Now

Unmatched odd-form automation throughput

With a comprehensive range of component handling and input types, various standard tooling, and personalized design and implementation services, the FuzionOF addresses and caters to almost any odd-form application

FuzionOF™ incorporates precise, repeatable, closed-loop processes that reduce defects, rework and waste.

2D/3D Hybrid Inspection System with Automation Technology
Precise results using high-speed OCT technology
Built for user convenience: S/W, Table Size, etc. can be customized according to users and applications.

World-class High-resolution X-ray imaging

Get detailed 3-dimensional (3D) view of interal structure of the components to identify and analyze complex defects
Tube Focus Size: 5㎛. A closed tube source and tube focus size of 5㎛ allows for higher resolution of the X-ray image to detect smaller defect and finer details of the inspection process
High Resolution FPD (Flat Panel Detector) ensures that you get detailed imaging and accurate results
Detector Tilt (50˚) capability allows for flexibility in capturing images from different angels

Versatility and ability to adapt

Additional optional functions available to add versatility and adapt machine to fit your inspection process and needs.

Versatility of the machine allows for inspection of small components to large circuit board
Additional functions include Real 3D CT, Rotation, CT and 3D
Navigation User interface (CNC Programming)
Easy to Use & User-Friendly Operation
Ideal for OEMs and CEMs

Common Industrial Applications:

Made for inspection, failure analysis and package inspection of PCBs and Electronic Assemblies including

SMT Assemblies

Semiconductor Assemblies
Battery Assemblies
Cable Assemblies

PRODUCT GALLERY

More Details

Flexible and cost-effective multi-process PCB assembly automation

Highlights

Scalable and can be integrated into lean manufacturing lines or configured in-line to replace the manual assembly process
Unsurpassed performance for single-process automation tasks at half the cost of alternative solutions
Enables user-level custom programming
Enables simplified reconfiguration by leveraging cloud-based libraries of “Apps” (process strategies and hardware drivers) to transition to the next application quickly.

Features

Dispensing, screw driving, labelling, test handling, and more
Radial and axial insertion
2K to 3K insertions per hour is typical
Large-part support up to 60mm tall, 50mm diameter, 1 lb in weight
Easily reconfigured for other operations
Add Uflex cells to enhance capability
