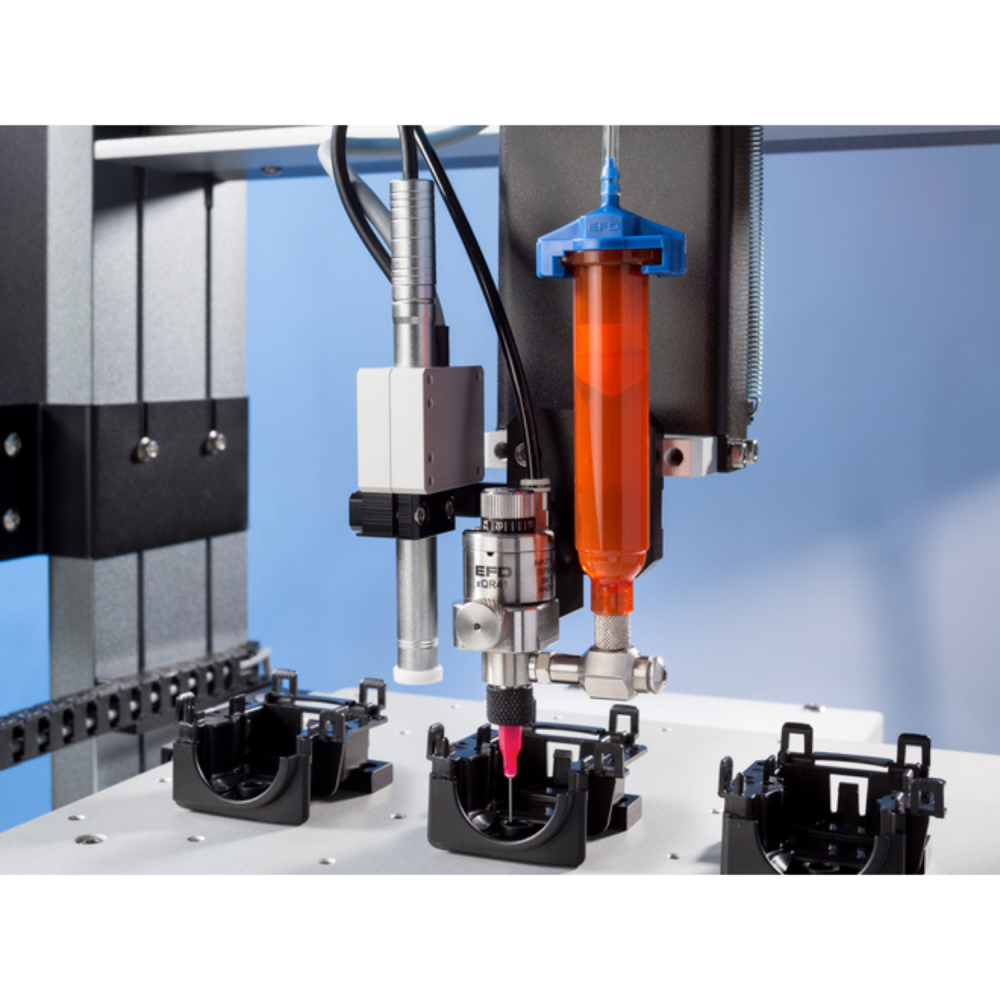

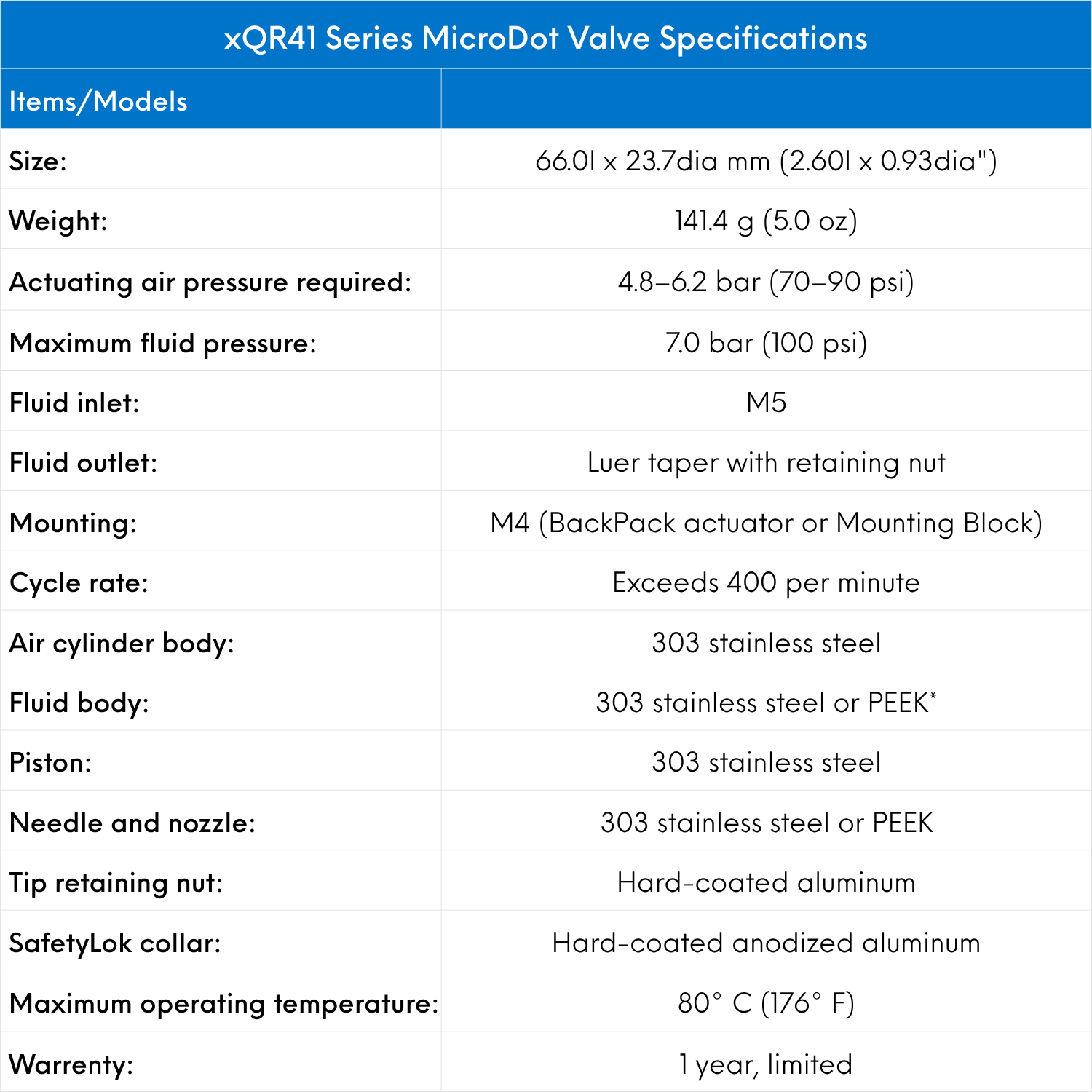

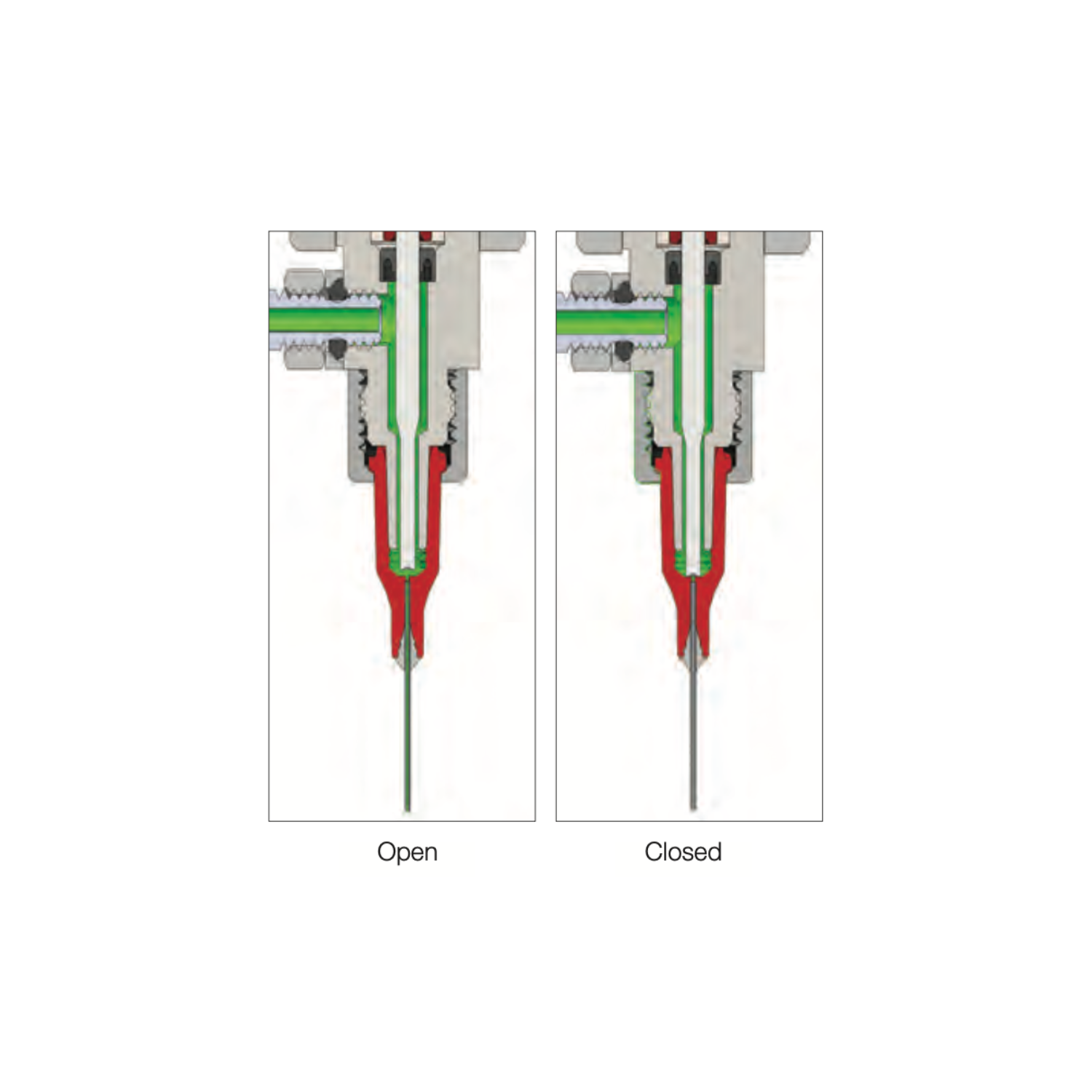

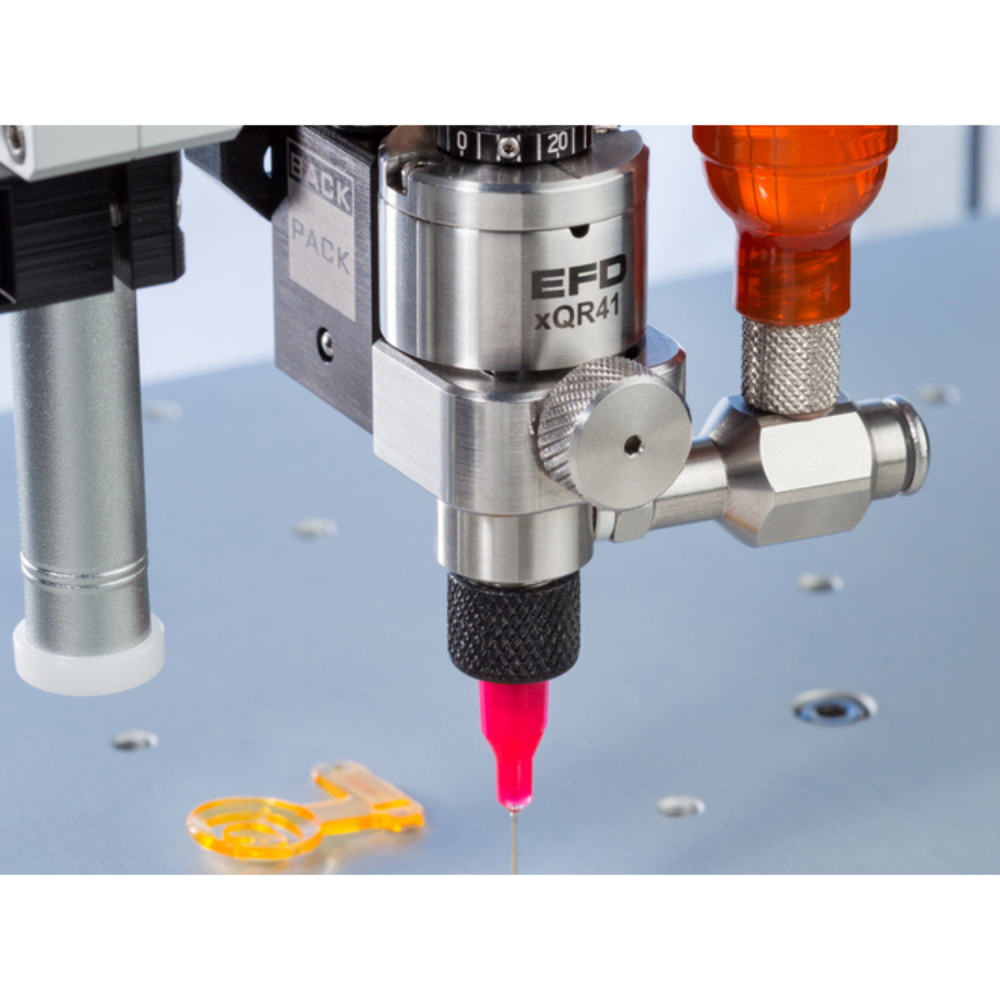

The xQR41 Series MicroDot™ valve is a pneumatically operated, adjustable, modular valve designed to apply precise micro-deposits of low- to high-viscosity fluids.
Ideal for automated assembly processes that require small dispensing tips, the xQR41 valve provides exceptional control as well as the absolute minimum dead fluid volume. Its modular design makes it adaptable to a variety of specific applications.
With a comprehensive range of component handling and input types, various standard tooling, and personalized design and implementation services, the FuzionOF addresses and caters to almost any odd-form application
FuzionOF™ incorporates precise, repeatable, closed-loop processes that reduce defects, rework and waste.
Additional optional functions available to add versatility and adapt machine to fit your inspection process and needs.
Made for inspection, failure analysis and package inspection of PCBs and Electronic Assemblies including
SMT Assemblies
| Item | Part Number | Item Description |
xQR41 with BackPack – Includes fluid inlet fittings #7020671 and #7361411 | 7360817 | • Includes adjustable stroke control. |
| 7361761 | • Includes adjustable stroke control and PEEK wetted | |
| 7360821 | • Includes adjustable stroke control and bullet-end needle | |
| 7360819 | • Includes non-adjustable cap and cup-end needle. |
| Item | Part Number | Item Description |
xQR41 with Mounting Block – Includes fluid inlet fittings #7020671 and #7361411 | 7360824 | • Includes adjustable stroke control. |
| 7361763 | • Includes adjustable stroke control and PEEK wetted parts. |
| Features and Benefits | For use with |
| • 60% smaller form factor | • Anaerobics* |
| • QR (Quick Release) clasp for fast, easy serviceability | • Cyanoacrylates |
| • Exchangeable, modular design | • Epoxies |
| • Consistent microdots as small as 150 µm (0.15 mm) (0.006″) diameter | • Fluxes |
| • Optional PEEK wetted parts resist curing from reactive adhesives | • Lubricants |
| • Primers | |
| • Silicone Oils | |
| • Solvents | |
| • UV-cure & Light-cure Adhesives |
