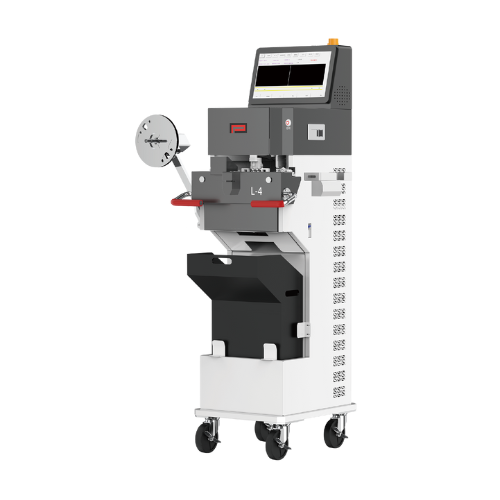

L-4 Automatic Splicing System
Description
Key Points:-
-
Automated splicing system for SMT placement lines.
-
Automatically aligns, trims, and joins component carrier tapes with high-adhesion splice tape.
-
Connects with MES networks and includes barcode verification to validate reel parameters and track materials.
-
Features a touchscreen interface and ergonomic loading mechanisms.
The L-4 Automatic Splicing System is an advanced, high-precision solution engineered specifically to optimize the continuous operation of SMT placement lines. By automating the alignment, cutting, and joining processes, the L-4 seamlessly connects the tail and head of component carrier tapes using high-adhesion splice tape. Distributed in the region by JEC Technology, this intelligent system eliminates manual splicing errors and ensures uninterrupted component feeding, keeping your surface-mount production running at maximum throughput.
Beyond mechanical reliability, the L-4 elevates shop-floor productivity through smart factory integration and user-centric design. It directly connects with Manufacturing Execution Systems (MES) to maintain complete material traceability and prevent component mix-ups during reel transitions. By resolving long-standing process bottlenecks, quality variances, and operator-dependent downtime, the L-4 stands as an indispensable asset for modern, high-reliability electronics manufacturing.
Features
- Automated High-Precision Alignment & Splicing: Equipped with high-accuracy cutting blades and precise tape alignment sensors, the L-4 automatically trims carrier tape ends and joins them with high-adhesion film. This ensures seamless pass-through across pick-and-place feeders and virtually eliminates tape jamming caused by manual misalignment.
- Seamless MES Connectivity & Material Traceability: Built for Smart Factory operations, the L-4 features full integration with MES networks alongside integrated barcode verification. This setup validates carrier tape parameters prior to joining, delivering complete traceability while ensuring total error-proofing against wrong-reel loading.
- User-Friendly Design & Uninterrupted Line Productivity: Designed with an intuitive touchscreen interface and ergonomic loading mechanisms, the unit allows operators to complete splicing operations quickly and reliably. By streamlining reel turnover and eliminating line stops, the system significantly reduces labor effort and maximizes overall SMT equipment effectiveness (OEE).
