Product: L-900 SMT Multi-function Splicing Systems

L-900 SMT Multi-function Splicing Systems

YOUNGPOOL M-series Laser Marking System L-900 | JEC Technology
L-900 SMT Multi-function Splicing Systems - Image 2
L-900 SMT Multi-function Splicing Systems - Image 3
L-900 SMT Multi-function Splicing Systems - Image 4
L-900 SMT Multi-function Splicing Systems - Image 5

$0.00

L-900 Automatic splicing machine delivers unsurpassed splicing reliability to drive improved yields and utilization with its seamless integration with MES and high degree of automation. L-900 is a 8mm/12mm/16mm/24mm SMT splicing machine with superior adhesive strength.

Categories: ,

Description

8mm/12mm/16mm/24mm Splicing machine with superior adhesive strength, unsurpassed splicing reliability, and a high degree of automation

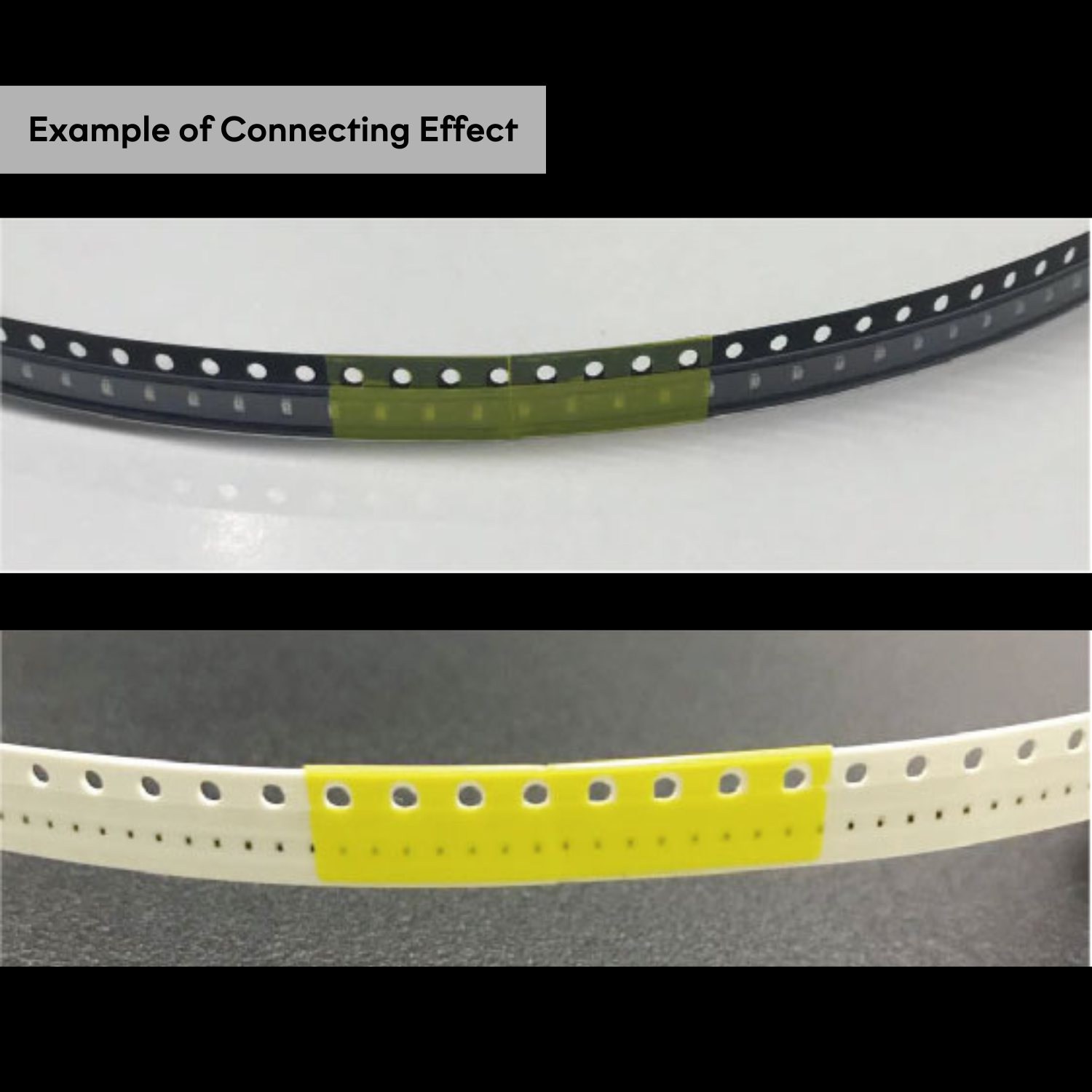

Designed for the automation of a production line with an SMT placement machine. Paper and plastic tape with the exact specification can realise automatic correction and splicing of two rolls of tapes with a width of 8mm to 24mm. In splicing, the equipment can automatically realise accurate cutting and splicing, and connect the head and tail of two rolls of tapes by high-adhesion film, to realise continuous production.
